AeroCut nano Max
UCHIDA AeroCut nano Max is a high-quality, entry-model card cutter that can turn prints into various sizes of cards in one pass. AeroCut nano Max is capable of taking paper stocks up to 330(W)x488(L)mm in size, 400gsm in weight, and finishing 500 business cards in less than 3 minutes. AeroCut nano Max is equipped with a patented air suction feeding mechanism, that allows reliable and consistent paper feed and ensures beautiful and precise finishing every time. Designed, built, and inspected in Japan.
Video
Key Features
-

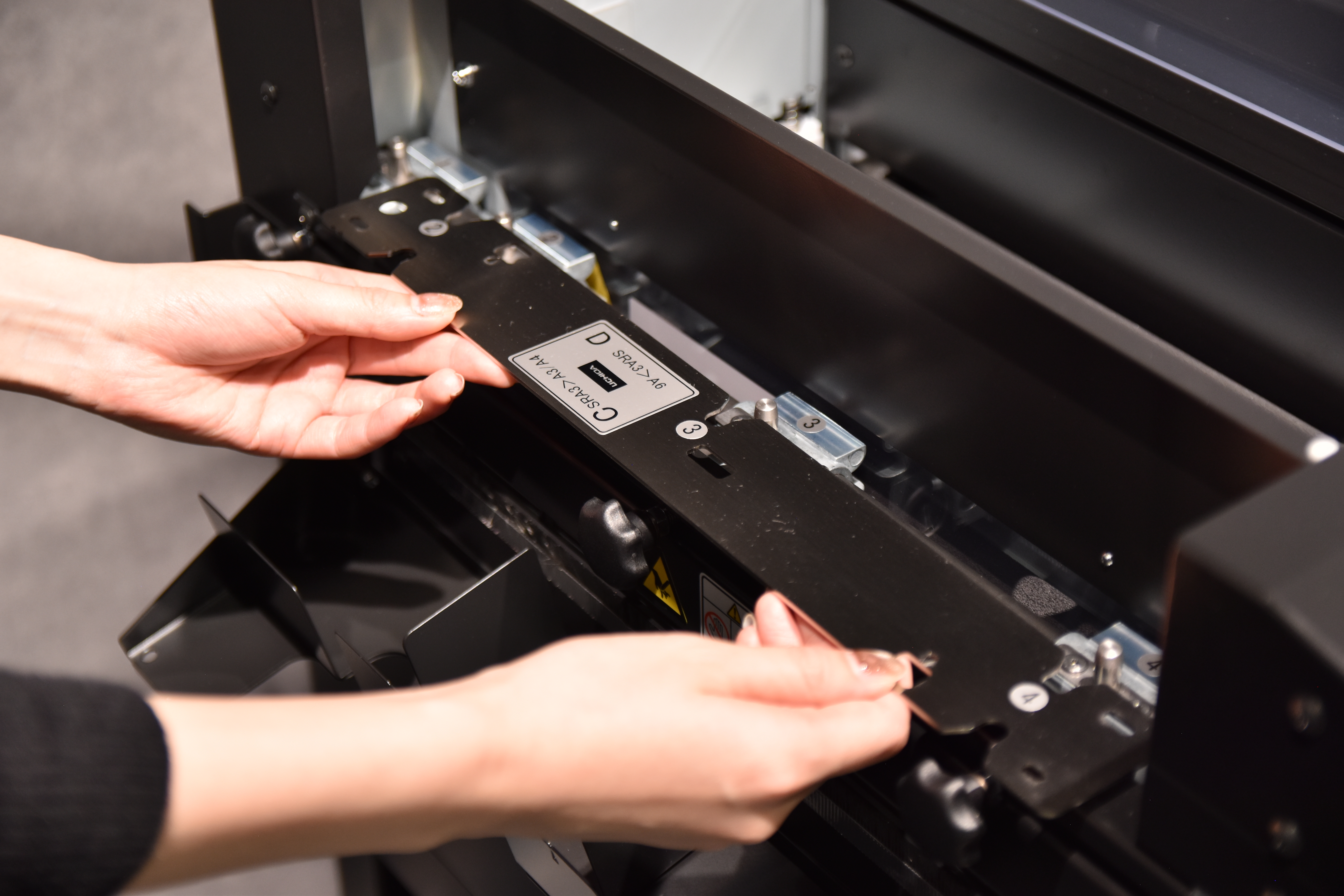

Versatile InstaSet BAR system
The unique InstaSet BAR indicates and aligns slitter positions accurately and can be easily adjusted manually without tools. Built-to-order bars are available for custom-sized jobs, at a lower cost compared to “slitter cartridges”. -
Quick and Easy Maintenance

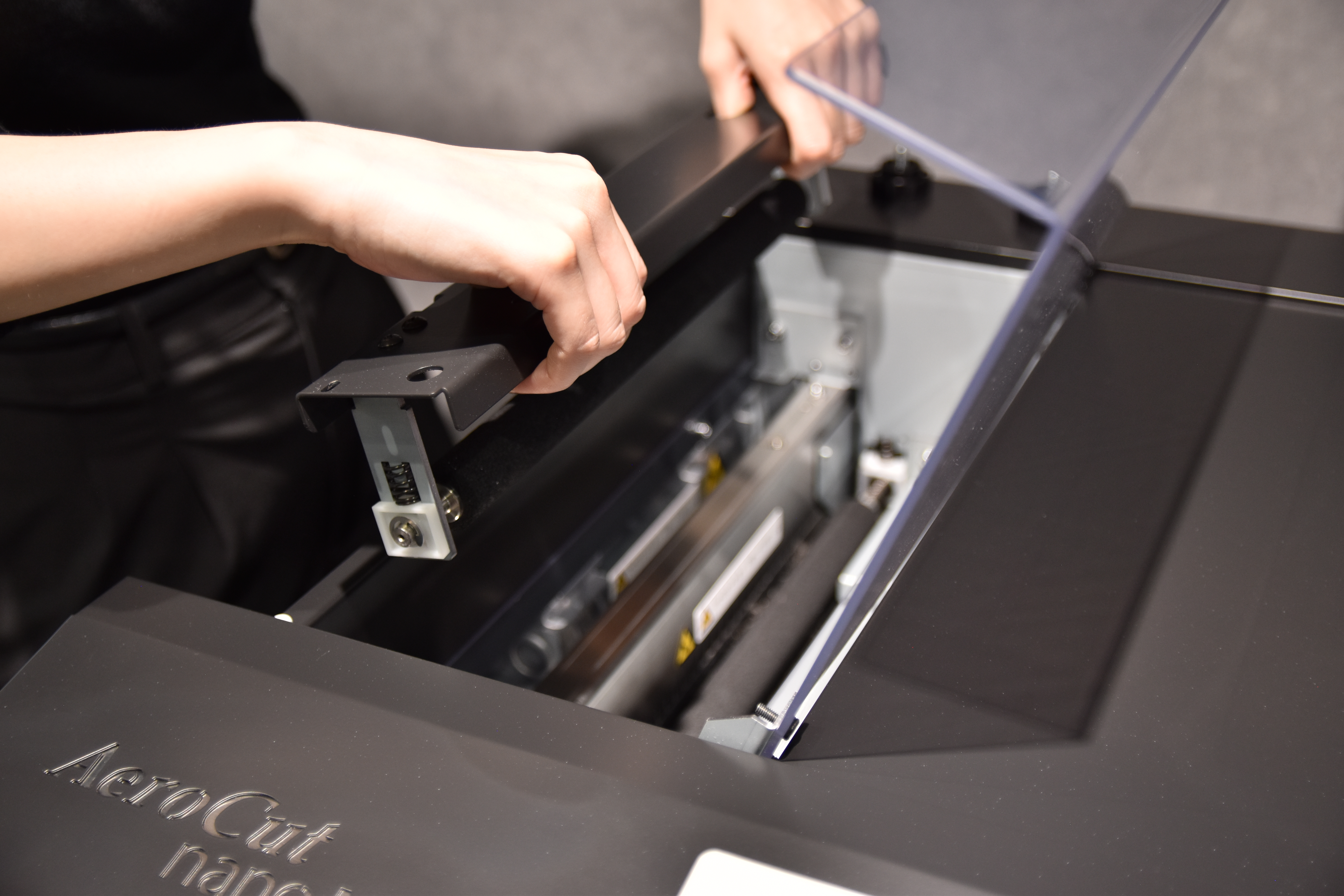

Cleaning and maintenance are important to keep the machine's performance and finishing quality.AeroCut nano Max has quick-release rollers and components. Even if the paper is jammed, this feature assists quick recovery. -
Patented Tri-suction Feeder
The patented Tri-Suction Feeding Mechanism reduces risks of double feeds and misfeeds drastically, therefore preventing paper jams inside and enhancing productivity.
Features
- Maximum paper size: 330(W)x488(L)mm
- Paper weight: 120 - 400 gsm (*depending on the paper quality and thickness.)
- Speed: 177 full-bleed business cards/min. (21up cards on a SRA3 sheet)
Specifications
| Basic functions | Auto-feed, Slit & Cross cut |
|---|---|
| In-feed paper size | 210(W)x210(L) - 330(W)x488(L)* mm 8.25"(W)x8.25"(L) to 13"(W)x19"(L) |
| Minimum finished size | 85(W)x50(L) mm | 3.5"x2" |
| Paper weight | 120 - *400 gsm |6-16 pt *Depending on the material, paper quality and thickness |
| Speed | 177 full-bleed business cards/min. (21up cards on a SRA3 sheet) |
| Feeding mechanism | Tri-suctions feeding mechanism(Patented) |
| Speed | Quick & easy tool-free slitter position settings with *InstaSet bar (Sheets/min) Skew adjustment | Cut-mark registration | Double feed detection Intuitive touch screen operation | Image shift & image stretch compensation 15 Preset jobs (Metric ver.)/31 Preset jobs (Inch ver.) + 80 custom jub memories Quick release rollers | Easy access to slitter units and paper exits |
| Dimensions | 766(W)x653(D)x1,012(H) mm | 30.2"(W)x25.7"(D)x39.9"(H) |
| Footprint | 1355(W)*x653(D)x1,229(H) mm | 53.4"(W)x25.7"(D)x39.9"(H) |
| Power source | 100-240VAC, 50/60Hz single phase |
| Power consumption | 130 VA |
| Net weight | 96kg | 212lbs (with the machine table) |
