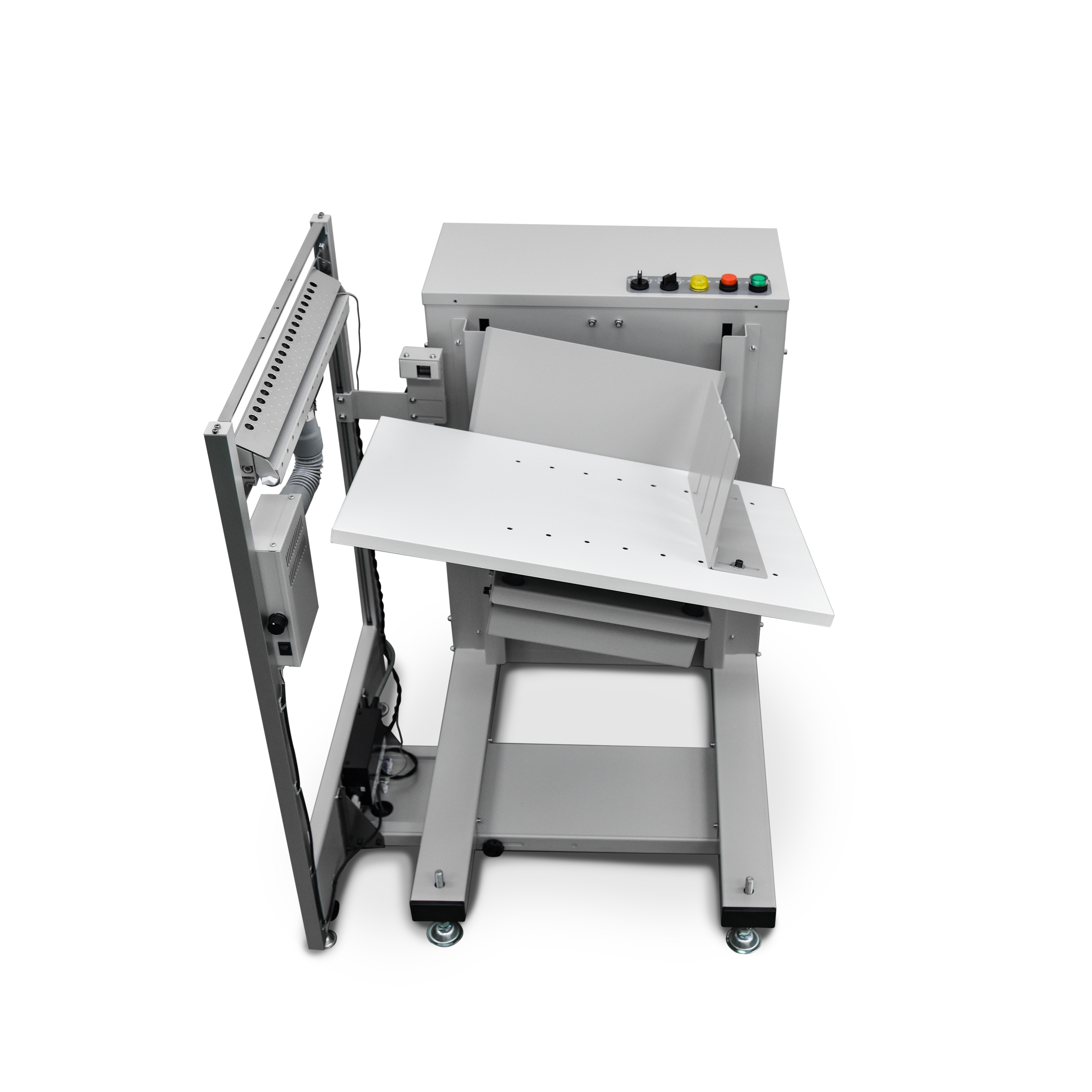

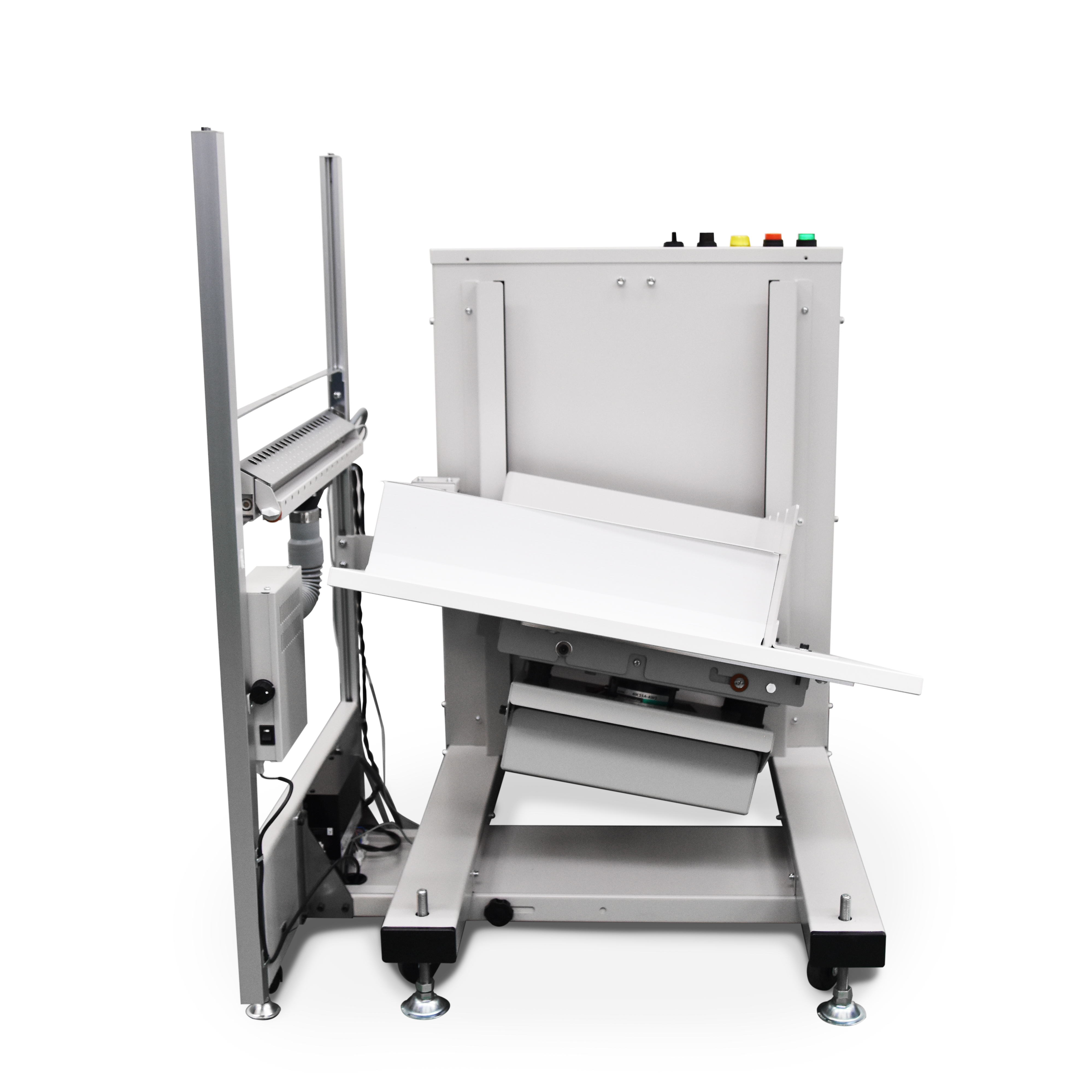

MSJ-1
Ideal for digital print finishing today. The MSJ-1 is the up-to-date print stacking and jogging machine to catch up with growing demands from today's digital print and print finishing environments. Uchida developed the MSJ-1 with decades of experience in producing paper joggers, and the best engineering. The MSJ-1 is capable of stacking a wide range of paper stocks, from lightweight flimsy paper to heavy cardboard, A6 size to 1200mm long paper. Proper print stacking helps downstream finishing and packing processes and helps improve productivity in the end.
Key Features
-
Streamline print finishing workflow.

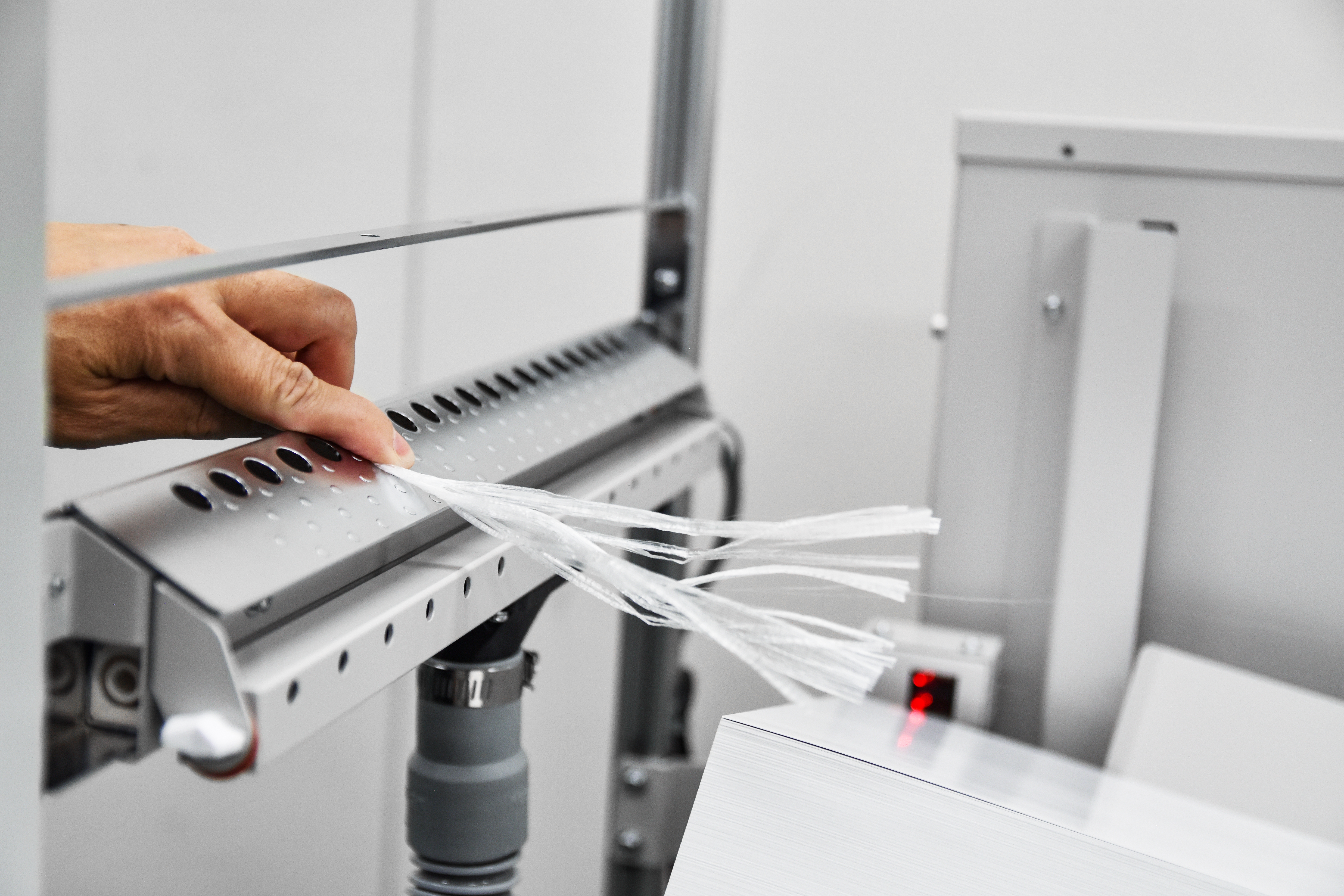

The Air stacking assist unit helps to stack long, flimsy papers neatly. The built-in ionizer also helps to remove static electricity on media, especially digital prints and laminated papers. -
Adjustable infeed height and direction.
MSJ-1's infeed height is adjustable within a range of 550mm to 900mm. Also, infeed direction can be either left to right or right to left. Thanks to these features, the MSJ-1 can stack papers from many types of printers and finishers. -
Automatic table elevation.
Once the infeed height is set, the stacker table elevates automatically as papers come in. When the stacker is full, the MSJ-1 gives an alert.
Specifications
| Stacking table configuration | 1200mm table | 730mm | 515mm |
|---|---|---|---|
| Stacking & Jogging method | Right angled paper guides (side & end) & motor vibration | ||
| Stackable paper size | 100x148mm - 330x1,200mm | 100x148mm - 330x730mm | 100x148mm - 330x515mm |
| Paper weight | 120 - *400 gsm *Depending on paper quality |
||
| Table tilt angle (3-dimensional tilt) |
(Long edge tilt) 5-10° (Short edge tilt) 5-15° |
||
| Infeed height | 550-900mm* | 550-900mm | |
| Stacking capacity | 75mm/25.3kg | 150mm/30.8kg | |
| Stackable paper weight | 82-350gsm | ||
| Power source | 110V, 120V, 220V, 230V or 240V, 50/60Hz, single phase | ||
| Power consumption | 120W | ||
| Footprint (LxDxH) | 1403x899x962mm | 941x899x962mm | 731x899x962mm |
| Gross weight | 110.7kg | 102.7kg | 97.7kg |
| Remarks | *When the infeed height is set to 550mm, long edge table tilt angle is limited to 5° | ||
