U-Booklet

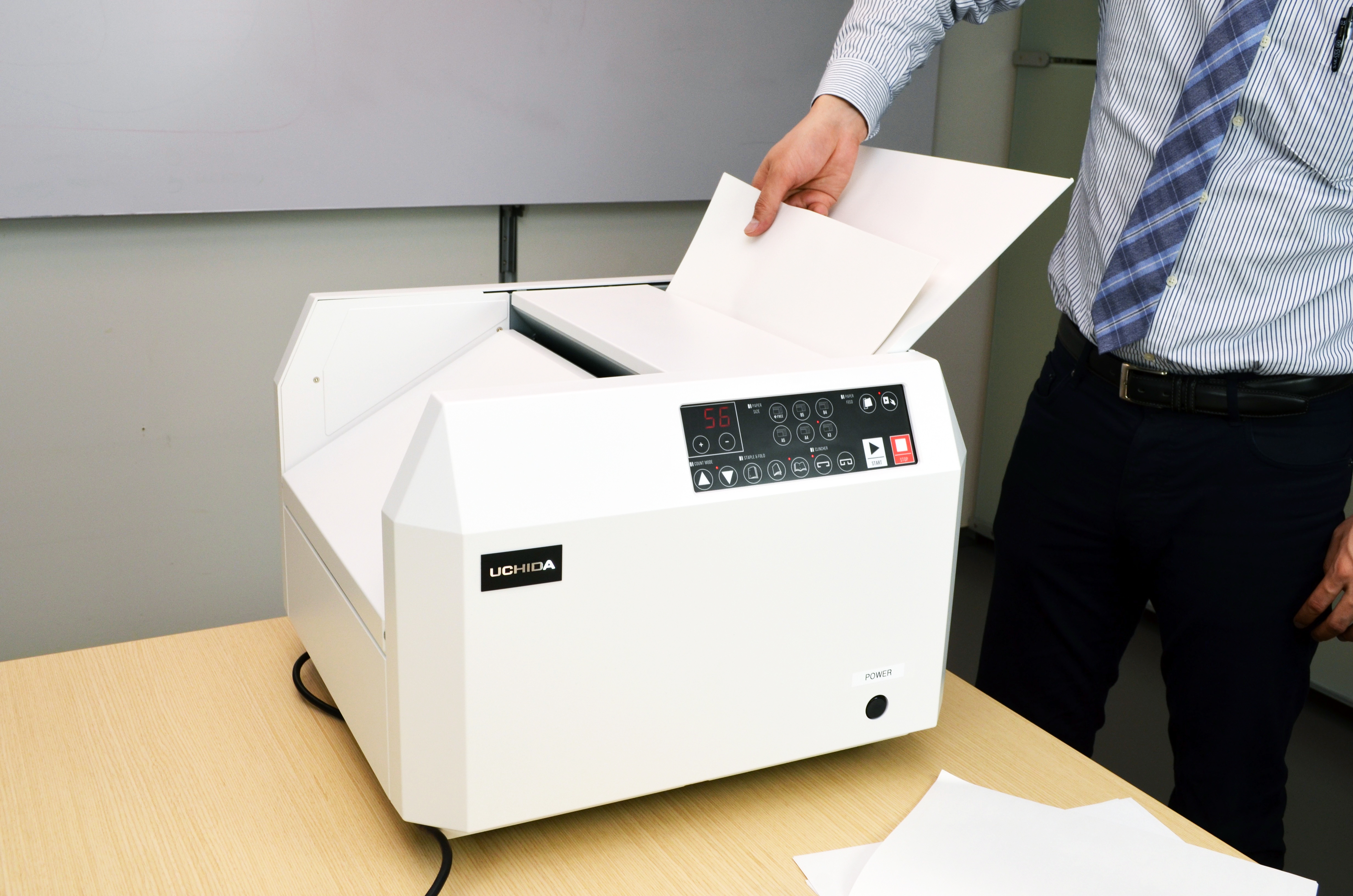

The U-Booklet is a tabletop booklet-making machine, that automates stapling / folding documents. Anyone can produce professionally finished booklets by easy operation, in a few seconds.
Video
Key Features
-
With just the press of a button, your booklet is done!
The U-Booklet is a tabletop booklet-making machine, that
automates stapling / folding documents. Anyone can produce
professionally finished booklets with easy operation, in a few seconds. -
Easy Operation

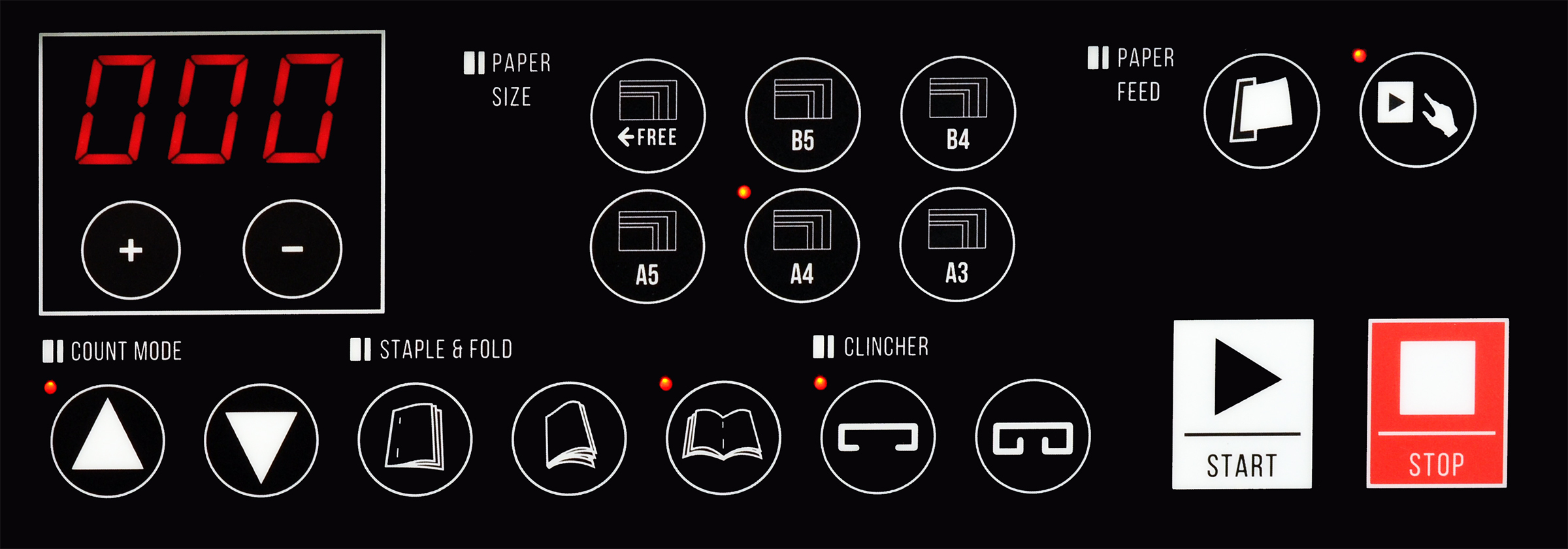

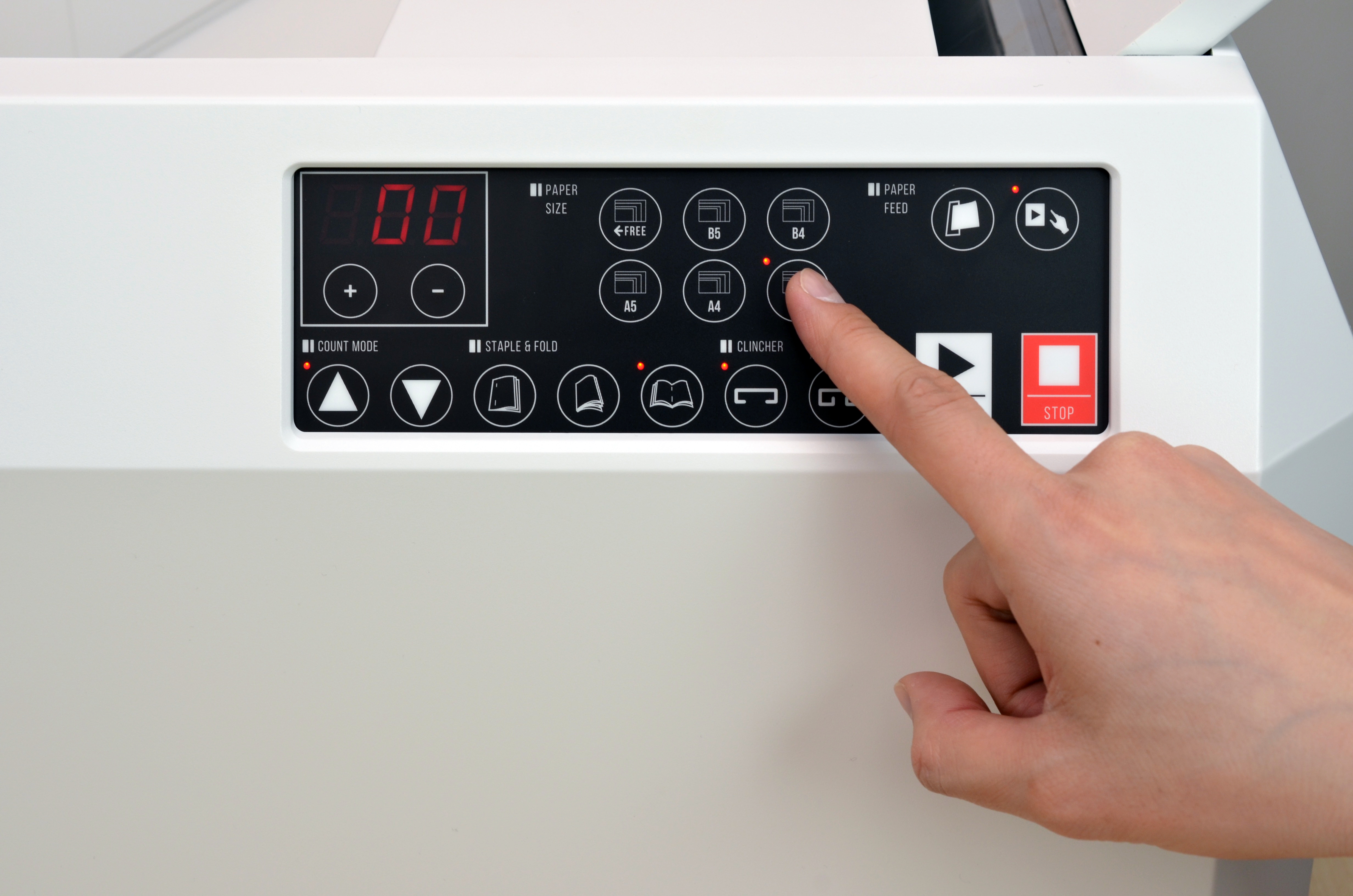

The U-Booklet has an icon-based electrostatic control panel with a built-in LCD counter. It makes the machine versatile and its operation easy and intuitive. Various functions and settings can be selected by light finger touch. -
Fast Production
U-Booklet can produce up to 800 sets of professional booklets per hour. Since it requires no warm-up time, you can save labour time and cost as soon as it's unboxed and turned on.
Features

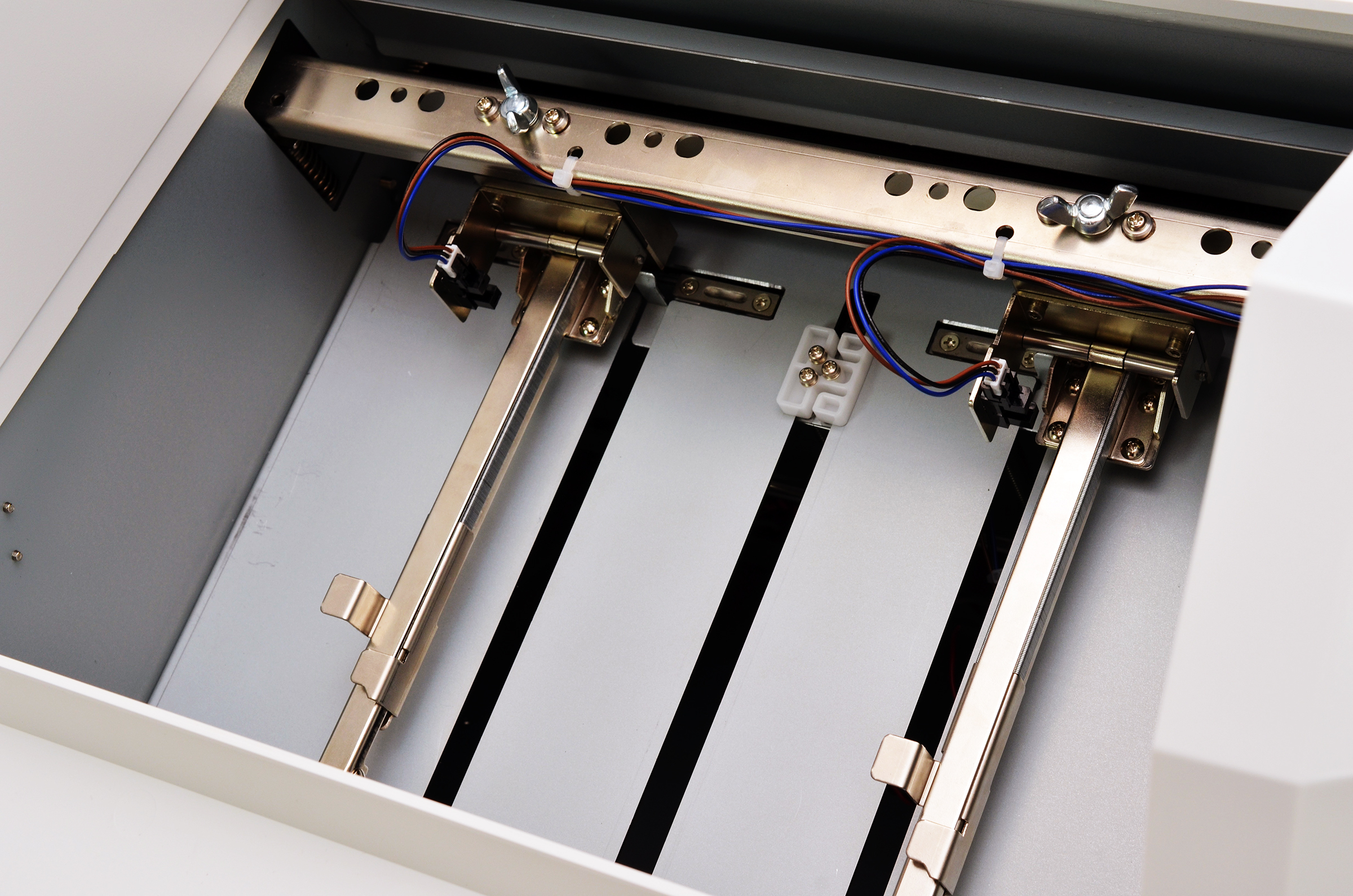

- Heavy duty staplers
- Easy staple loading
- Setting without any tool
Specifications
| Machine type | Tabletop |
|---|---|
| Maximum Paper size | 330.2 x 468.0mm |
| Minimum Paper size | 0.0 x 210.0mm |
| Paper weight | 64-300kgs |
| Capacity | Up to 16 sheets of 80gsm *Depending on paper quality and staple quality. |
| Paper setting | Manual insertion + press button |
| Staple process | Manual (Press button) or automatic |
| Staple type | 26/6 size |
| Staple pitch | 90mm, 135mm or 180mm |
| Staple mode | Saddle, side and corner stapling |
| Number of staple heads | 2 |
| Paper ejection | Natural ejection |
| Speed | Up to 800sets/hour |
| Error detection | No staple, paper jam |
| Power source/ Consumption | 100-240VAC, 50/60Hz 70W, sigle phase |
| Footprint | 495(W) x 470(D) x 350(H)mm |
| Net weight | 21kg |
