UC-1200
Uchida Collator UC-1200 efficiently collates a wide variety of papers at the maximum cost performance. The centre feed system eliminates the need to re-position the booklet maker and trimmer each time the paper size is changed. You can now install the system in a permanent station. Naturally, Uchida’s reliable paper feed system, proven throughout the world, has been kept in the same precise structure as it is constructed. The UC-1200 can also be connected by signal with major booklet makers available in the market. It is suitable not only for professional printer applications but also for in-house printing, quick copy/print shops, schools, and many other uses.
Key Features
-
Quick setting of paper feed pressure

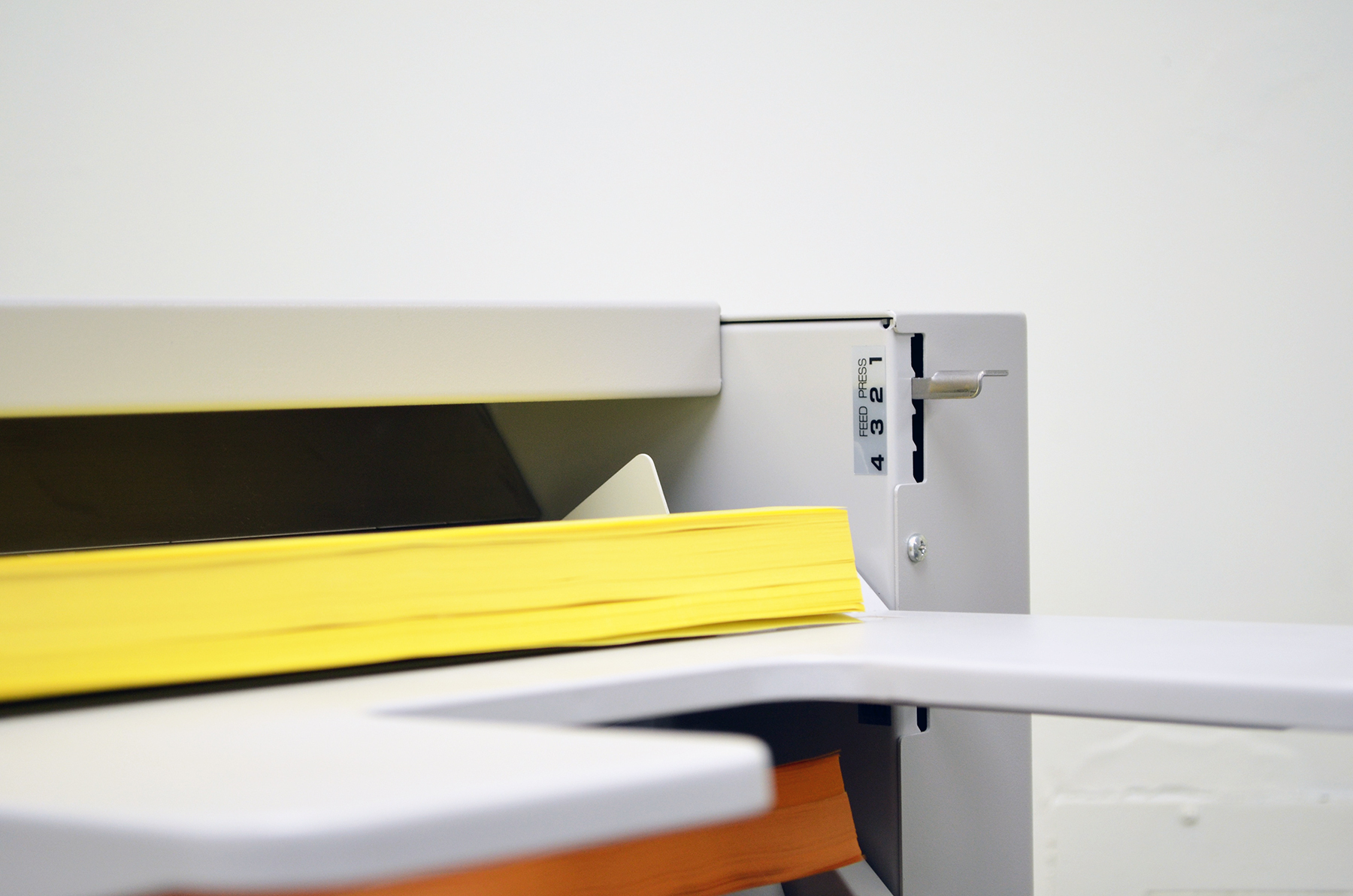

The paper feed pressure lever is relocated on the outside of UC-1200 so that it enables the operator to adjust the pressure level much easier. The paper feed
and separator pressures can be adjusted easily and quickly without detaching the feed tray. -
Detachable Feed Tray

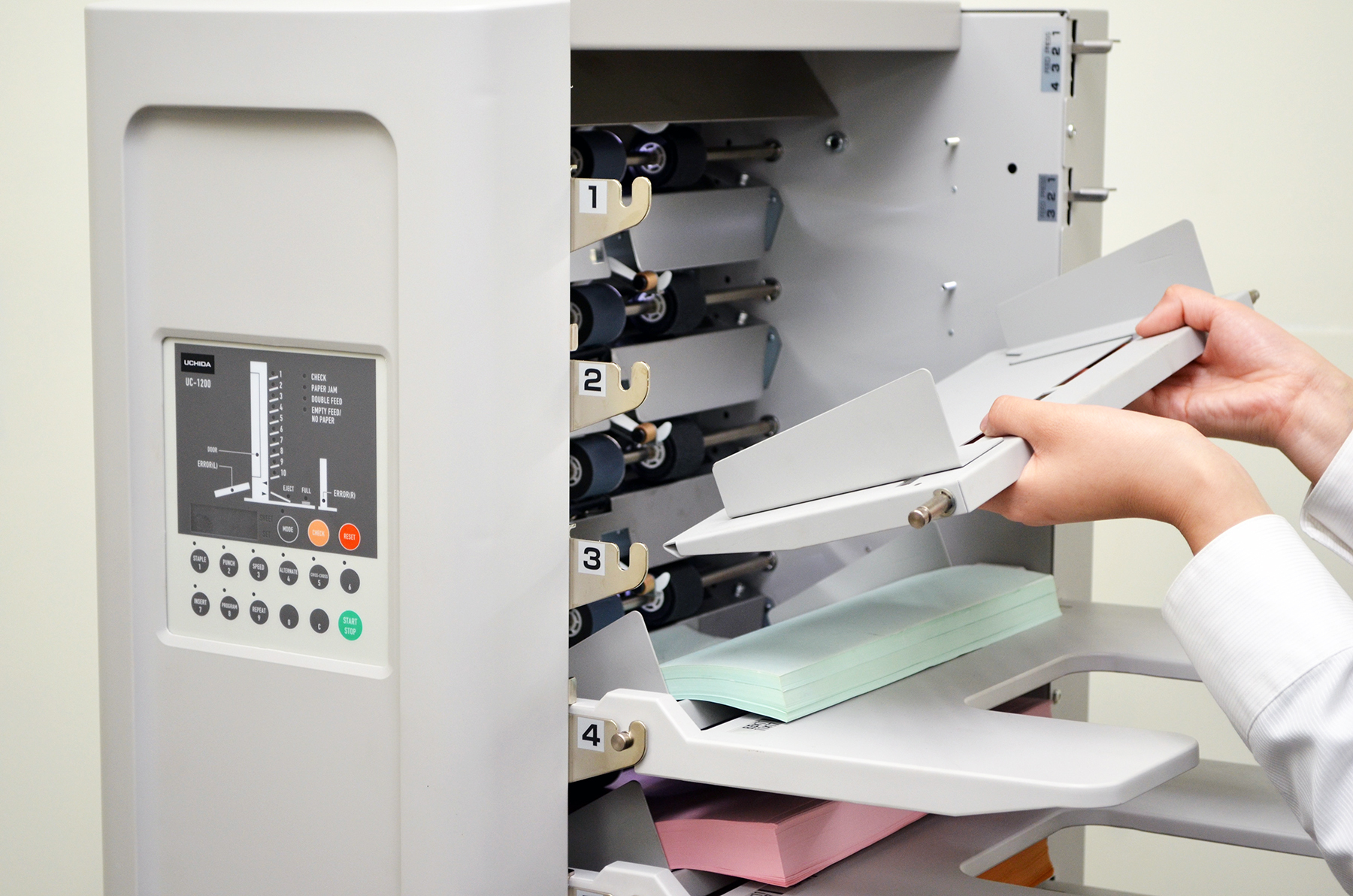

The feed trays can be detached
easily without using any tools. It makes adjustments, cleaning and troubleshooting much easier. -
Intuitive settings and Clean operation

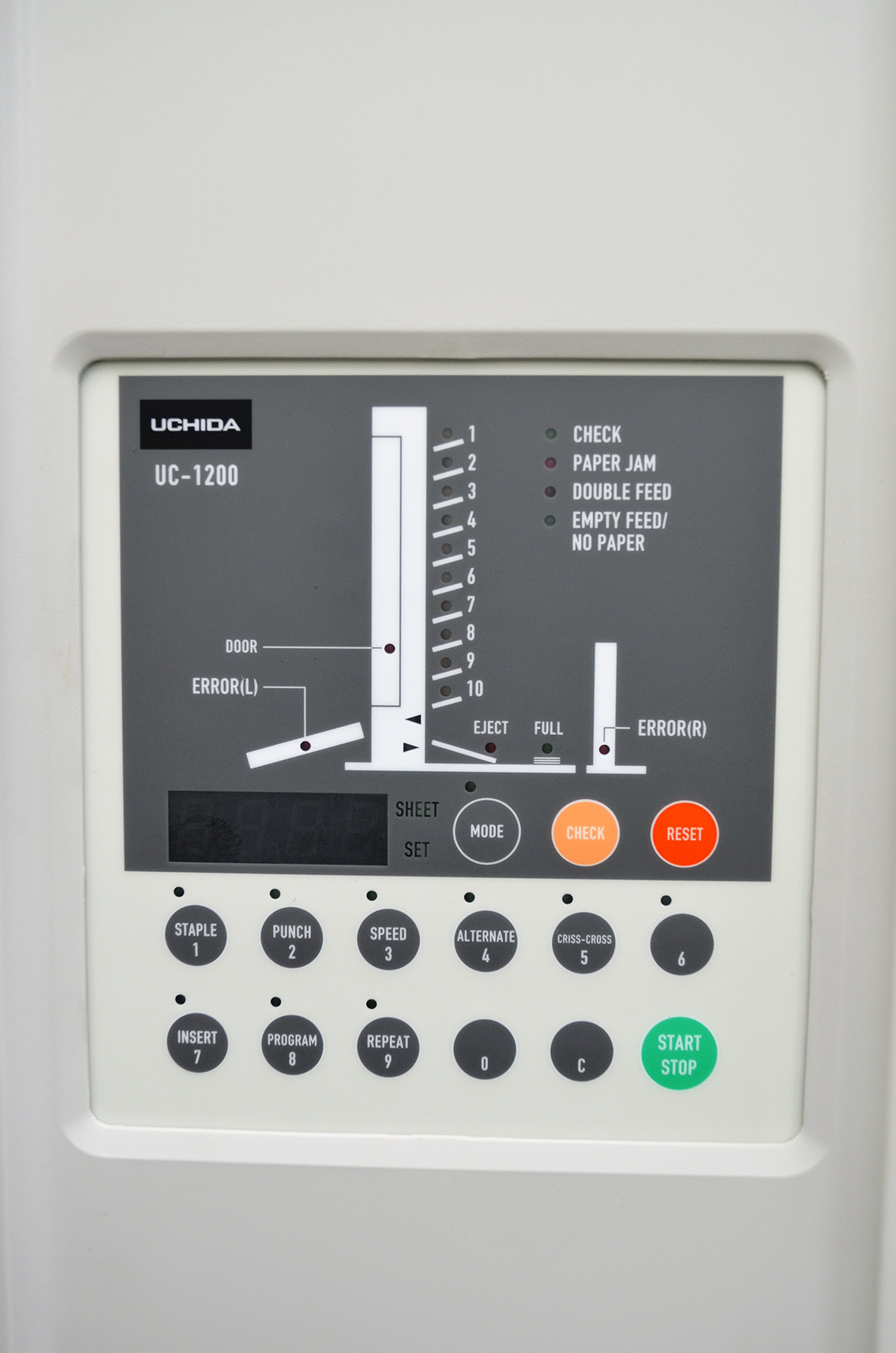

The panel indicates the settings and status of the machine intuitively. Even when the operation does not go well, it tells what to check by LED lights and error codes.
Specifications
| Number of station | 10 |
|---|---|
| Paper size | 95x150 - 328x469 mm |
| Paper quality | Offset paper, copy paper, NCR paper |
| Max. loading capacity | 28 mm / bin (350 sheets of 64 gsm paper) |
| Processing speed | 2,400 or 4,200 sets /hr. (A4, portlait) |
| Paper weight | 1st&10th station: 35 - 210 gsm 2nd-9th station: 35 - 160 gsm |
| Max. stacking capacity | 65mm |
| Stacking system | Straight or criss-cross stacking |
| Counter | 4 digits addition and preset subtraction |
| Error detection | No paper, empty feed, paper jam, double feed, stacker full |
| Tower connection | Up to 2 towers |
| Finisher connection | USF-3100 or USF-W |
| Collating function | Alternate function, insertion mode |
| Power source | 100-240VAC, 50/60Hz, single phase |
| Power consumption | 200W |
| Dimensions | 545(W)x740(D)x1,056(H) mm |
| Net Weight | 76kg |
