Key Features
-
Perforation/scoring unit
By replacing a perforation unit with a folding table, the EZF-500/600 can be used as a perforator. It is also possible to add or replace perforation/scoring/kiss-cut heads on a unit to give multiple finishing by one pass. -

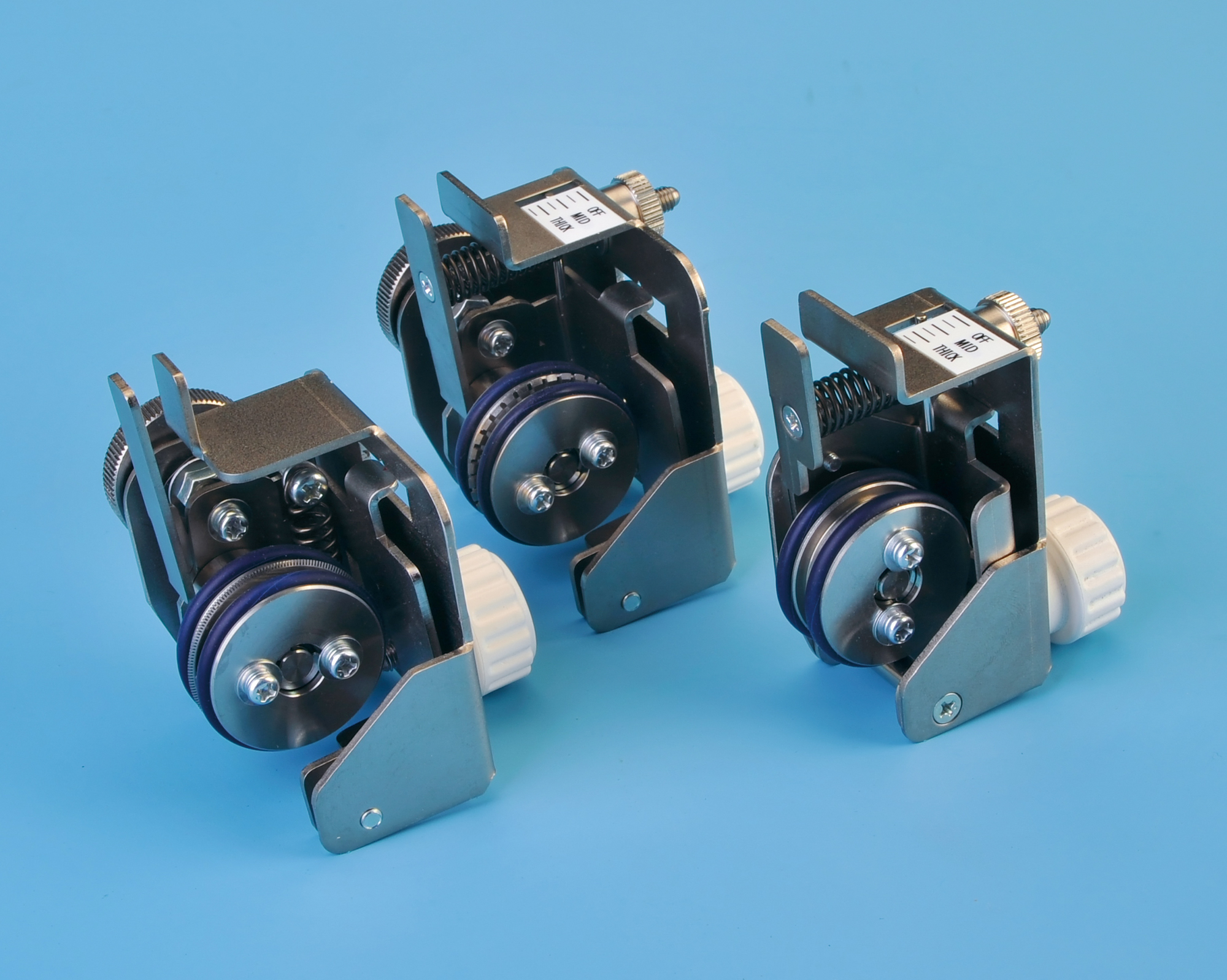

Perforation/Scoring/Kiss-cut heads
These heads which hold rotary tools can be mounted on a perforation/scoring unit.
+ Perf head with perfing position adjustment
+ Perf head with perfing pressure adjustment
+ Thin perf unit -

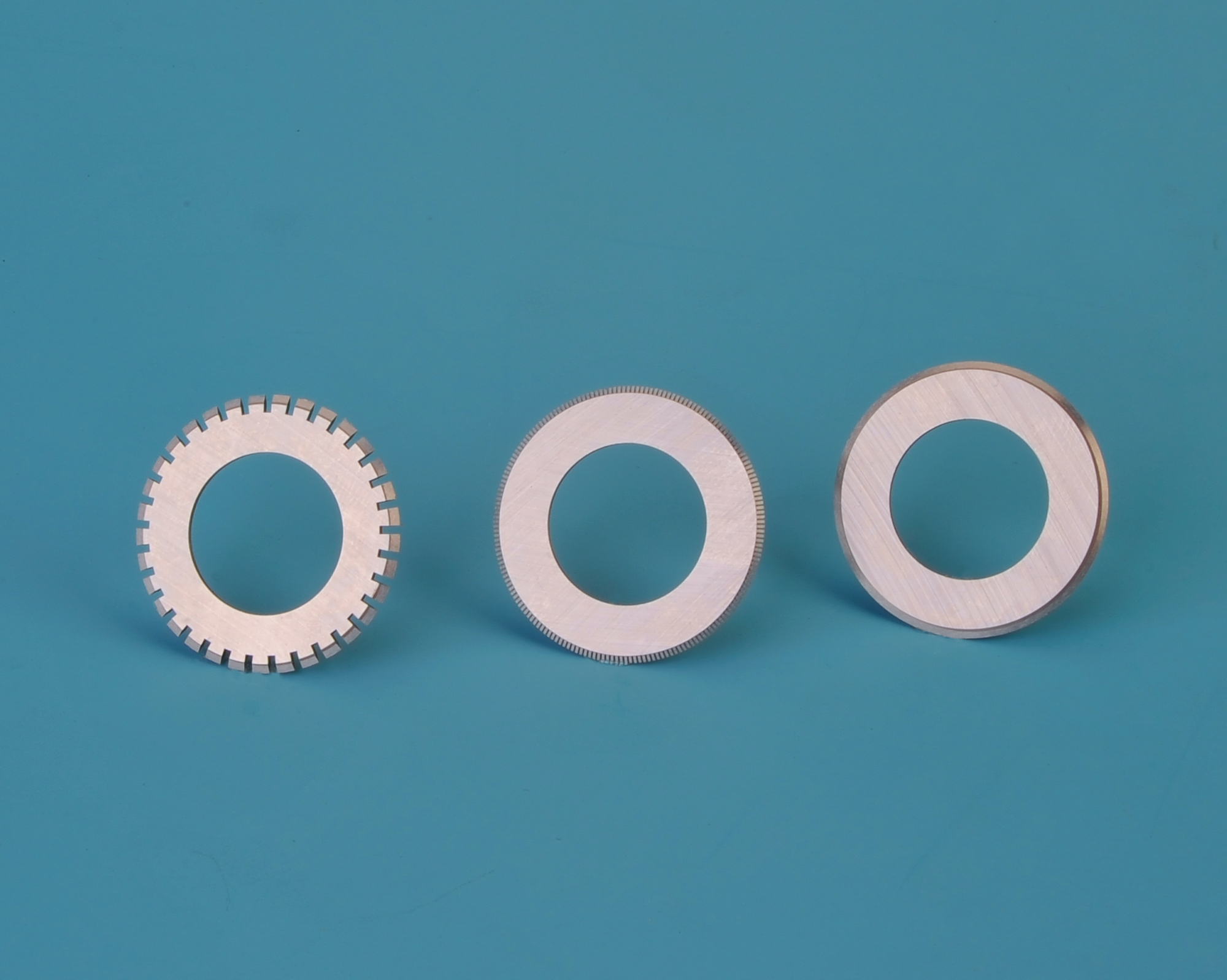

Rotary tools
+ Micro perforation blade
- 0.35mm(cut), 0.2mm(tie)
+ Perforation blade for thick paper
- 2.0mm(cut), 1.0mm(tie)
+ Scoring blade
+ Kiss-cut blade

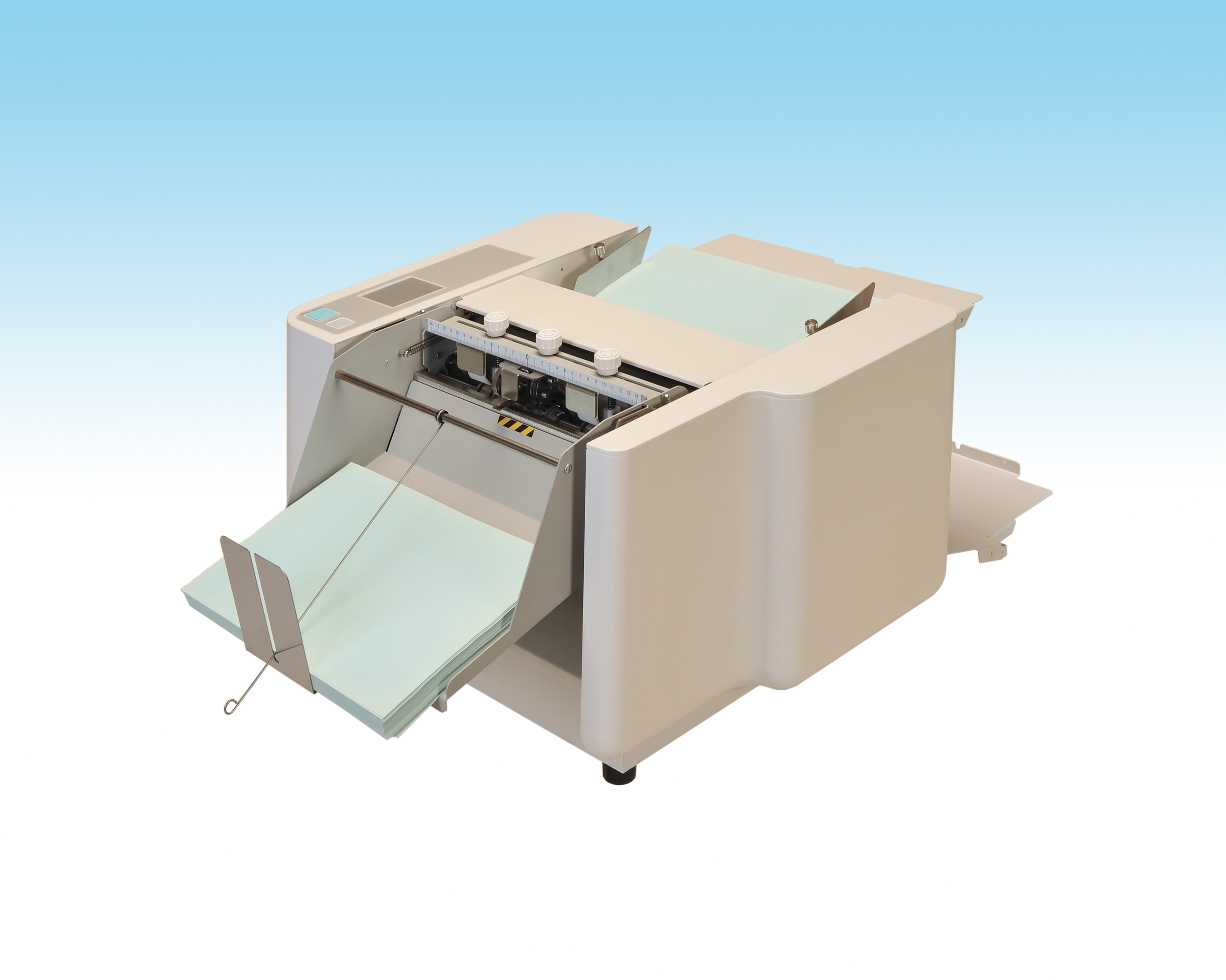

Features
- Features automatic folding position setting.
- Folding patterns can be stored and recalled via the touch screen.
- Fastest folding speed at its class, up to 14,400 sheets/hour
- Perforation / scoring / kiss cut units available as options.
Specifications
| Folding position setting | Automatic |
|---|---|
| Max. Paper size | 300 x 432mm |
| Min. Paper size | 91 x 128mm (Single fold only) |
| Speed sheets/hr. (A4 Single fold) |
1,800 - 14,400 |
| Paper Quality | 46.5 - 160gsm (Single fold : up to 230gsm) *Depending on paper type |
| Paper stacking capacity | 500 sheets (64 gsm) |
| Operation | Color touch screen (Addition/Subtraction) |
| Folding pattern | 6 kinds (Single, letter, zigzag, double prallel, fold-out, gate) |
| Double feed detection | ○ |
| Fold pattern memory | 36 kinds |
| Fine adjustment memory | 36 kinds |
| Odd-size paper folding pattern memory |
12 kinds |
| Cross fold | ○ |
| Paper jam detection | ○ |
| Error map | ○ |
| Paper ejection | Belt |
| Ejection roller setting | Automatic |
| Quick release rollers | ○ |
| Options | Perforation, scoring, slitter |
| Dimensions (W x D x H mm) |
1,030x545x500 |
| Net Weight | 29.6kg |
| Power Consumption | 50W (100-240VAC, 50/60Hz) |
