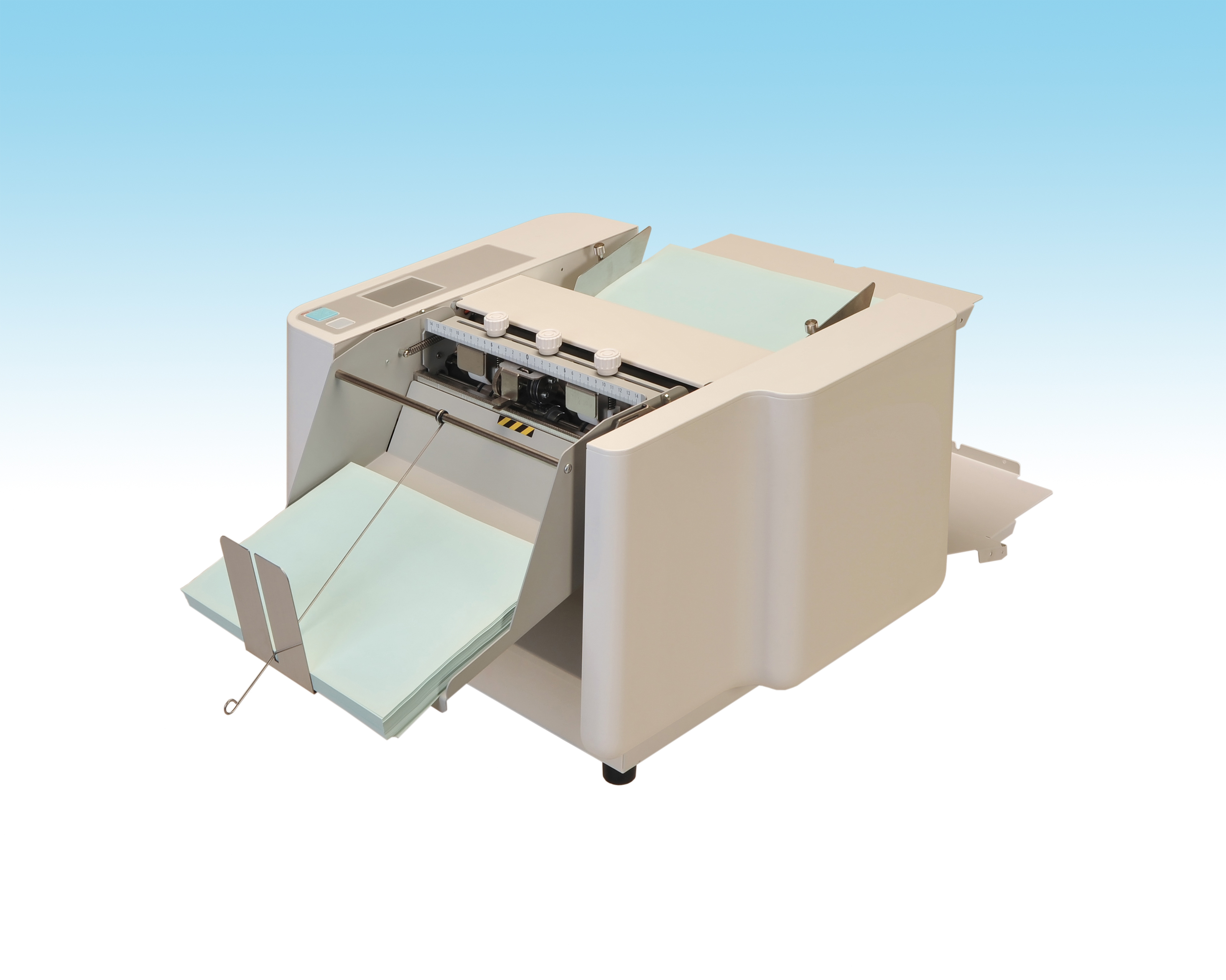

Uchida Paper Counter EZF-series
By replacing a perforation unit with a folding table, the EZF-500/600 can be used as a perforator. It is also possible to add or replace perforation/scoring/kiss-cut heads on a unit to give multiple finishing by one pass.

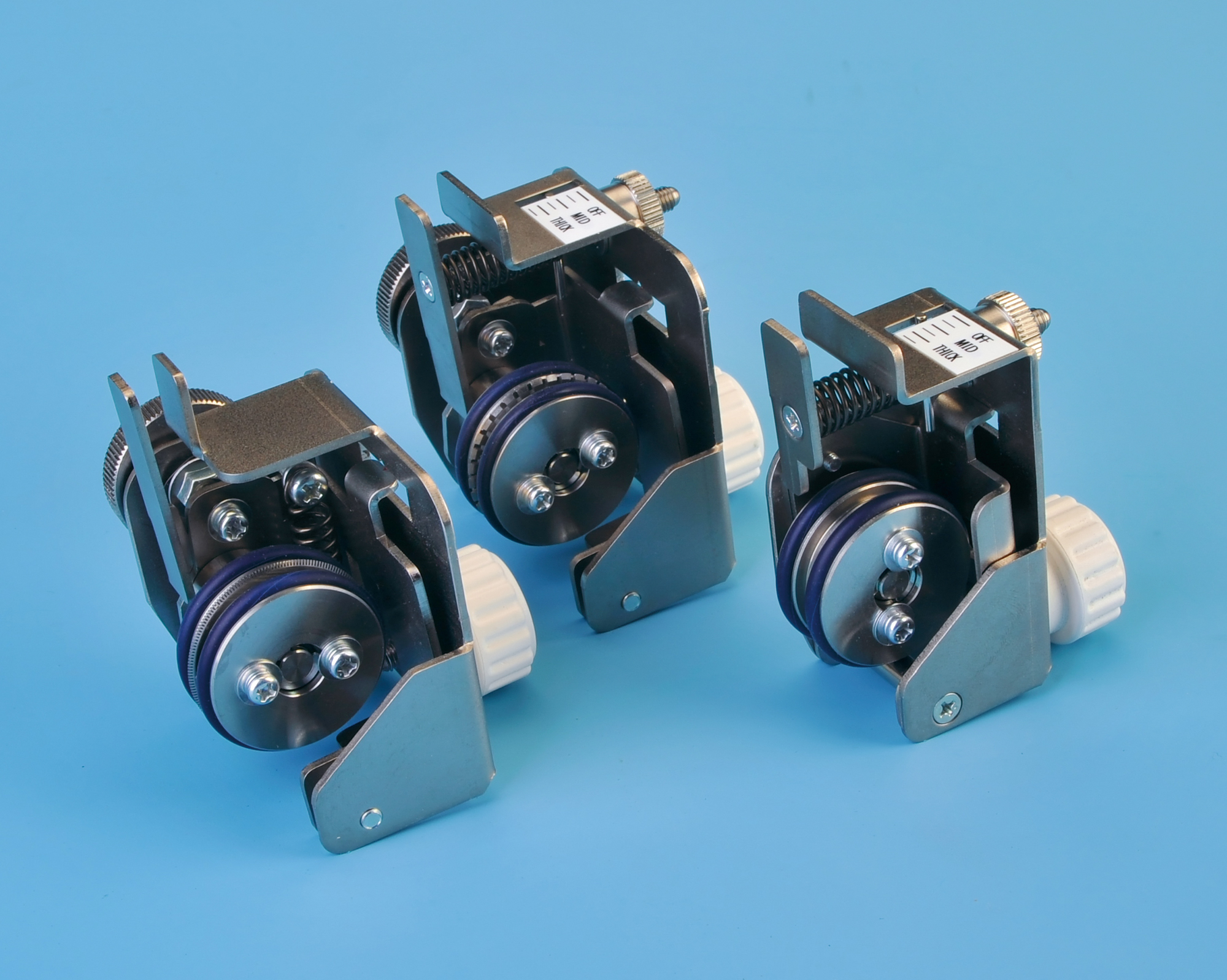

These heads which hold rotary tools can be mounted on a perforation/scoring unit.
+ Perf head with perfing position adjustment
+ Perf head with perfing pressure adjustment
+ Thin perf unit

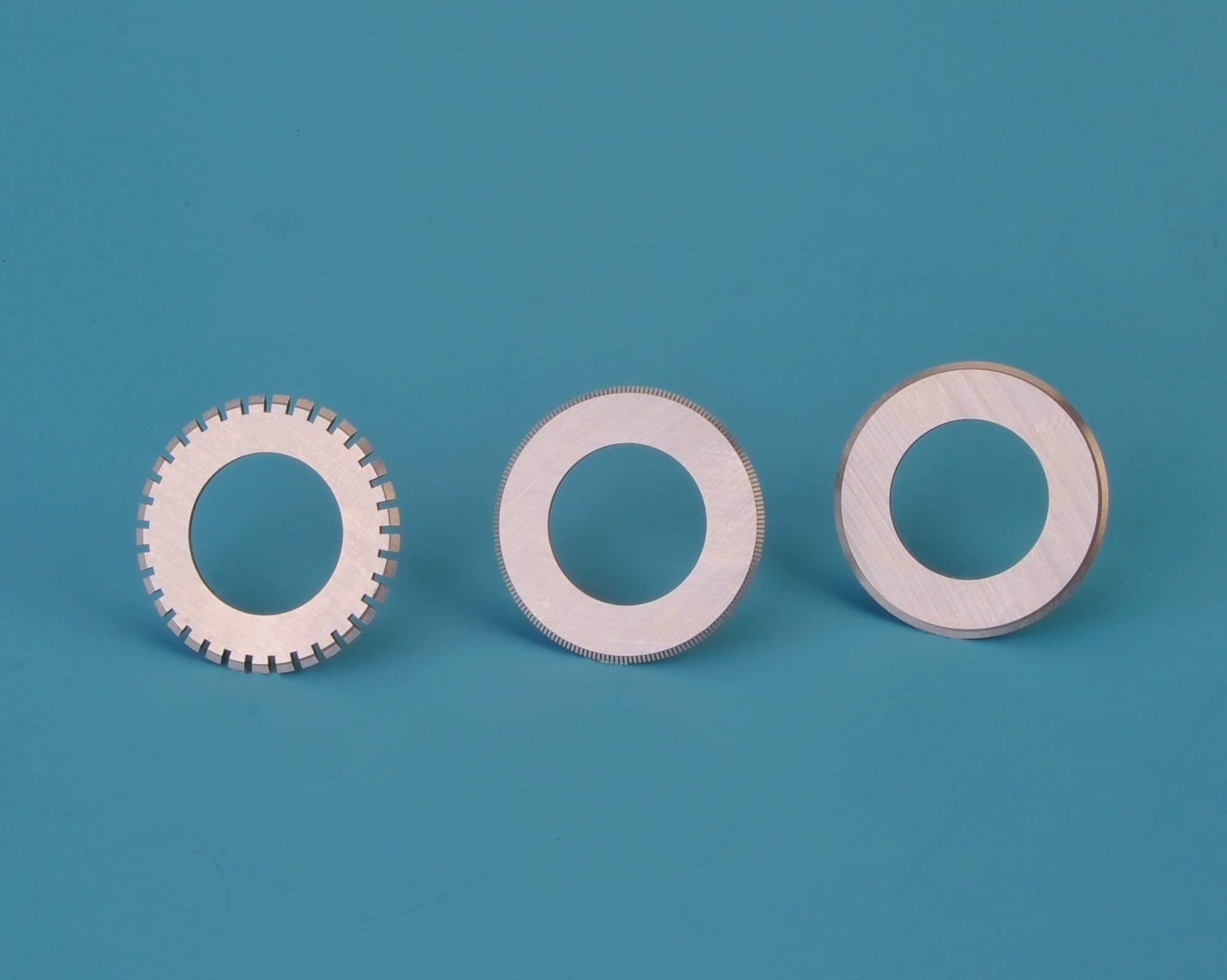

+ Micro perforation blade
- 0.35mm(cut), 0.2mm(tie)
+ Perforation blade for thick paper
- 2.0mm(cut), 1.0mm(tie)
+ Scoring blade
+ Kiss-cut blade Features
All the setting and operation can be done via the touch screen.
Features paper feed pressure & separator pressure adjustment.
Automatic feed table elevation and delivery roller setting.
An optional device allows the EZF-600 to perforate, score and kiss-cut papers instead of folding.
The most productive, reliable and user-friendly paper folder at its class.
Folding position setting
Max. Paper size
300 x 432mm
Min. Paper size
91 x 128mm (Single fold only)
(A4 Single fold) 1,800 - 14,400
46.5 - 160gsm
(Single fold : up to 230gsm)
*Depending on paper type
Paper stacking capacity
500 sheets (64 gsm)
Color touch screen (Addition/Subtraction)
6 kinds (Single, letter, zigzag, double prallel, fold-out, gate)
Double feed detection
Fold pattern memory
Fine adjustment memory
folding pattern memory 24 kinds
Paper jam detection
pressure adjustment ○
Feed table elevation
Ejection roller setting
Quick release rollers
Perforation, scoring, slitter
(W x D x H mm) 1,030x545x500
50W (100-240VAC, 50/60Hz)
