AeroFold Plus
Uchida paper folding machine AeroFold Plus can fold up to SRA3 size of various types of papers such as offset, coated, digital printed papers etc. by its belt suction feeding system. Paper weight up to 160 gsm. (up to 230 gsm for single fold) / Paper size up to 330(W)x488(L) mm. / Folding speed up to 18,000 sheets/hour. (single fold) Memory function for fine folding position adjustments & odd size papers / Error detection & indication makes it easy to diagnose. / Double feed detection alarms when it feeds double sheets. / With optional accessories, perforating, scoring, and folding longer sheets becomes possible.
Video
Key Features
-

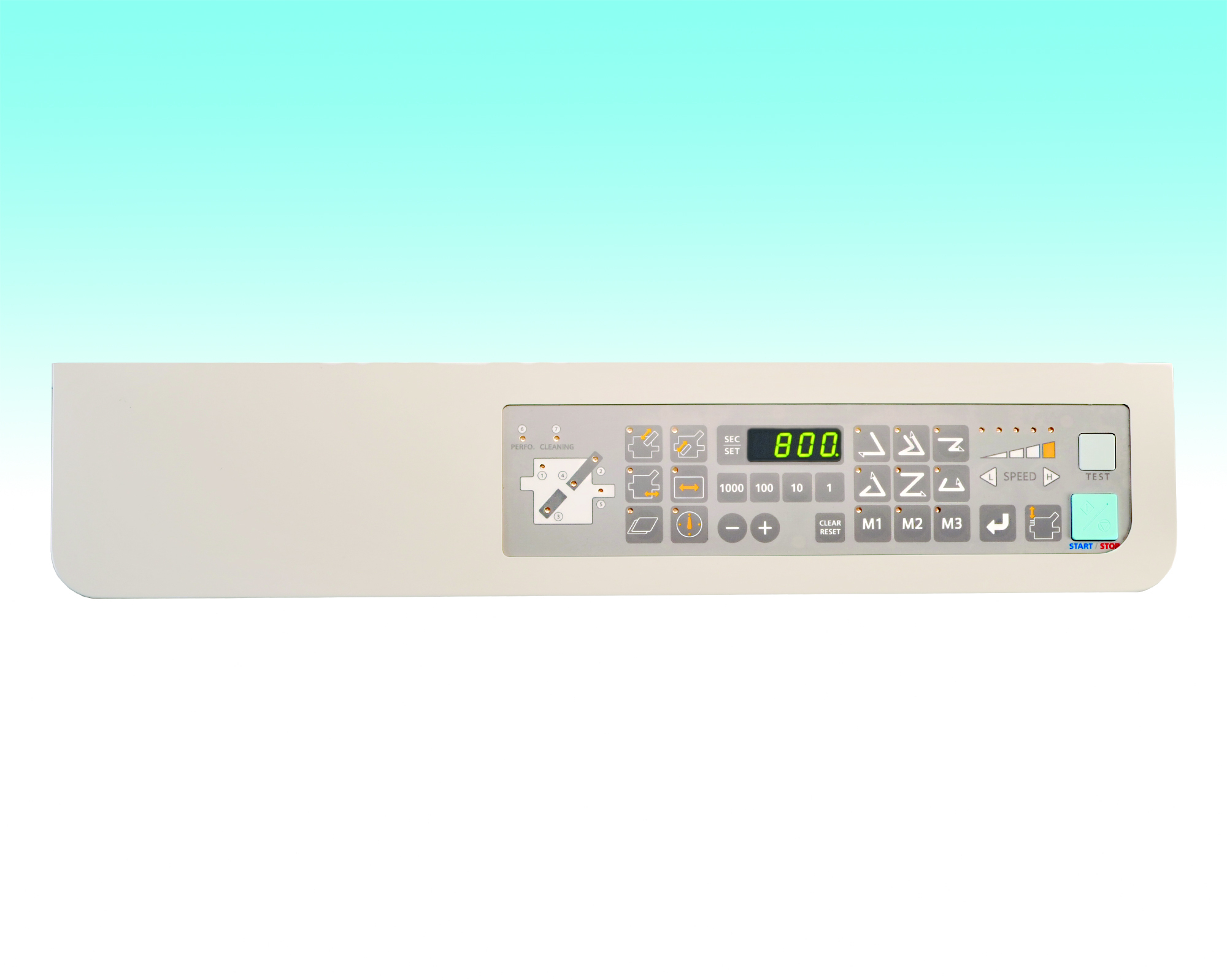

User Friendly Operation Panel -

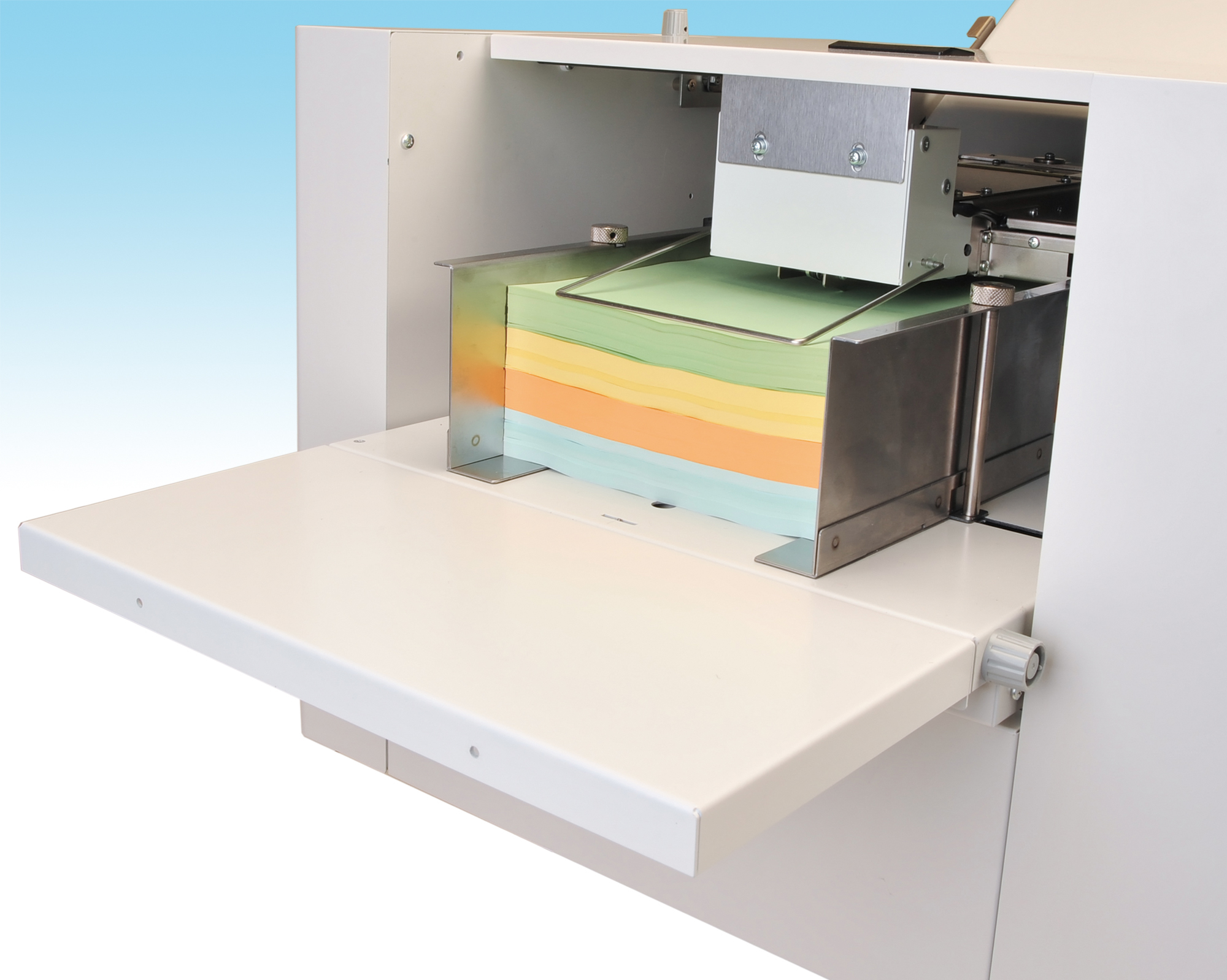

Increased stacking capacity -

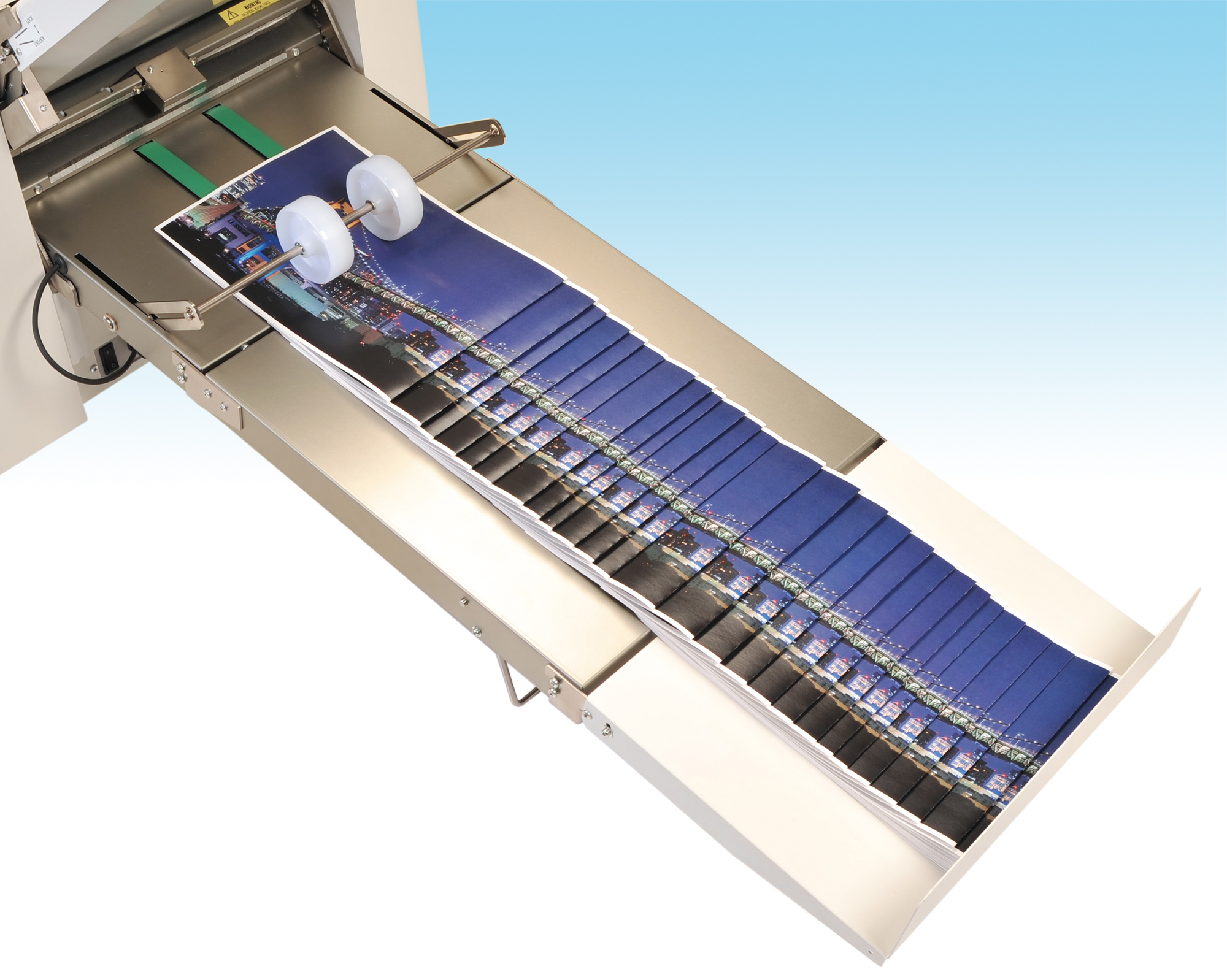

Tidy paper ejection
Features
- Optional perforation / scoring heads
- Optional perforation / scoring heads
Specifications
| Paper size | 120(W)x210(L) mm - 330(W)x488(L) mm / 4.72"(W)x8.27"(L) - 13.00"(W)x19.20"(L) |
|---|---|
| Paper weight | 52.3 gsm - 160 gsm / 35.30 lbs - 108.1 lbs (Up to 230 gsm / 155.3 lbs for single fold) |
| Maximum stacking capacity | 800 sheets (80 gsm / 54.10 lbs paper) |
| Paper quality | Offset paper, copy paper, recycle paper, art paper, coated paper |
| Folding speed | Up to 18,000 sheets / hr. in 5 steps (80 gsm / 54.10 lbs paper, single fold) |
| Automatic fold pattern setting | Single, letter, zigzag, double parallel, fold-out and gate fold |
| Counter | 4 digits, addition / subtraction digital counter |
| Paper feeding system | Upper belt suction feeding system + double feed detection |
| Automatic paper size detection | A3, A4, A5, B4 and B5 |
| Paper ejection system | Automatically changed for 8 paper sizes and folding patterns |
| Additional features | Batch function, paper jam detection, slant adjustment, automatic feed table elevation |
| Power supply / consumption | 110-120 VAC, 50/60Hz, 2.6A, 240W / 220-240 VAC, 50/60Hz, 1.5A, 260W |
| Dimensions / Net weight | 1,300(W)x587(D)x586(H) mm, 72 kg / 51.18"(W)x23.10"(D)x23.07"(H), 159 lbs |
| Error detection | Empty feed, no paper, paper jam, stacker full, incorrect table setting |
| Options | Perforation unit (micro perforation), scoring unit, narrow perfing/scoring head optional foldng table for folding 630mm length paper in single fold, delivery tray extension |
