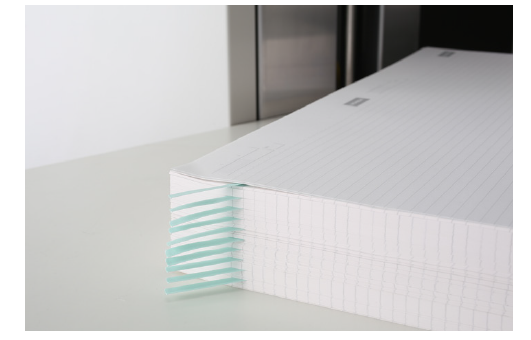

Uchida Countron Twin Touch is the professional double head paper couonting machine. Its accurate pin & blade counting mechanism, proven by thousands of users for several decades enables the operator to count a pile of sheet by just a press of a button. Twin head counting mode reduce labor time by counting 2 corners of a paper pile simultaneously. This is very helpful when counting security prints such as bank notes, cash vouchers etc. Both towers are capable to insert tab tapes between papers, every 2-1000 sheets or at designated numbers. This enables the Countron Twin Touch to batch the papers with checking the number.
Machine type | Standalone, with double counting head | ||
---|---|---|---|
Counting mechanism | Twin-blade with suction chip | ||
Counting speed | 0 to 2,500 sheets/min. | ||
Countable paper quality | 22 to 256 gsm | ||
Countable paper size | Single head use | (Fixed tower) 100x130mm to 1,200x800mm / 5.9"x4.5" to 47.2"x31.5" (Movable tower) 150x200mm to 1,200x800mm / 5.9"x7.9" to 47.2"x31.5" |
|
Double head use | 280x130mm to 1,200x800mm / 14.2"x4.5" to 47.2"x31.5" | ||
Stacking capacity | Up tp 300mm / 13.8" | ||
Tab tape insertion | Every 2 to 1,000 sheets | ||
Height of work table | 772mm or 860mm | ||
Power source | 110, 220, 230, 240 VAC (Single phase), 50 or 60Hz | ||
Power Consumption | 850W | ||
Dimensions | 1,970(W)x1,180(D)x1,440(H)mm/ 77.5"(W)x 46.4"(D)x56.7"(H) |
||
Net weight | 500kgs/1,102lbs | ||
Options | RAM for random tabbing program memory Air table |
