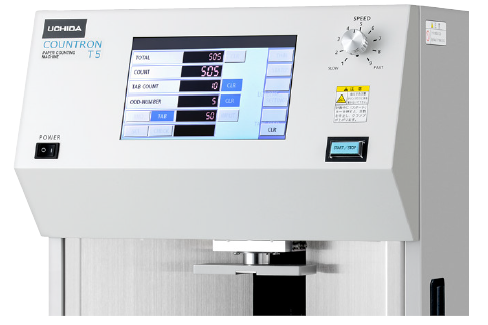

Countron T-5
Counting a large number of papers, such as documents, prints, forms etc. can be a serious bottleneck of a workflow. UCHIDA Countron T5 is an ideal solution for helping to automate such a process. Its accurate pin & blade counting mechanism, proven by thousands of users for several decades enables the operator to count a pile of sheet by just a press of a button. Although the Countron T5 is an entry tabletop model, the maximum counting speed reaches 2,000sheets/min., with a capability of inserting tab tapes in every 2 - 1,000 sheets, or as the operator designated.
Key Features
-
Intuitive touch screen operation & settings. -
Increased counting speed. The same great accuracy.
Specifications
| Machine type | Tabletop sheet counter |
|---|---|
| Counting mechanism | Pin & blade system |
| Counting speed | 0-2,000sheets/min. |
| Countable paper quality | 22-186gsm |
| Countable paper size | Min.: 55x90mm *36x55mm when using small item counting guide Max.: 300x420mm *350x660mm when using large table |
| Stacking capacity | Up to 120mm* subject to change depending on paper weight |

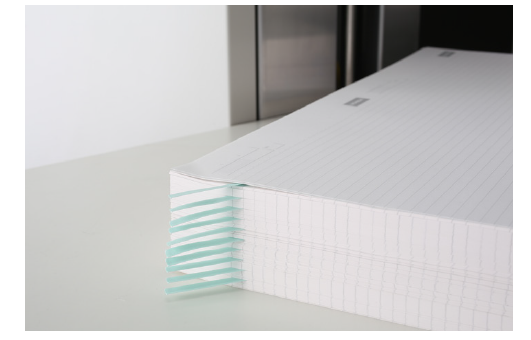

| Tab tape insertion | Yes / Every 2 to 1,000sheets / Tape roll: 6mmx100m |
| Power source | 110/120/220/230/240 VAC, 50/60Hz, single phase |
| Power Consumption | 440W |
| Dimensions | 440(W)x704(D)x695(H)mm |
| Net weight | 75kg |
| Options | Count record management system for PC RAM for random tabbing program memory Large table Small item counting guide |
