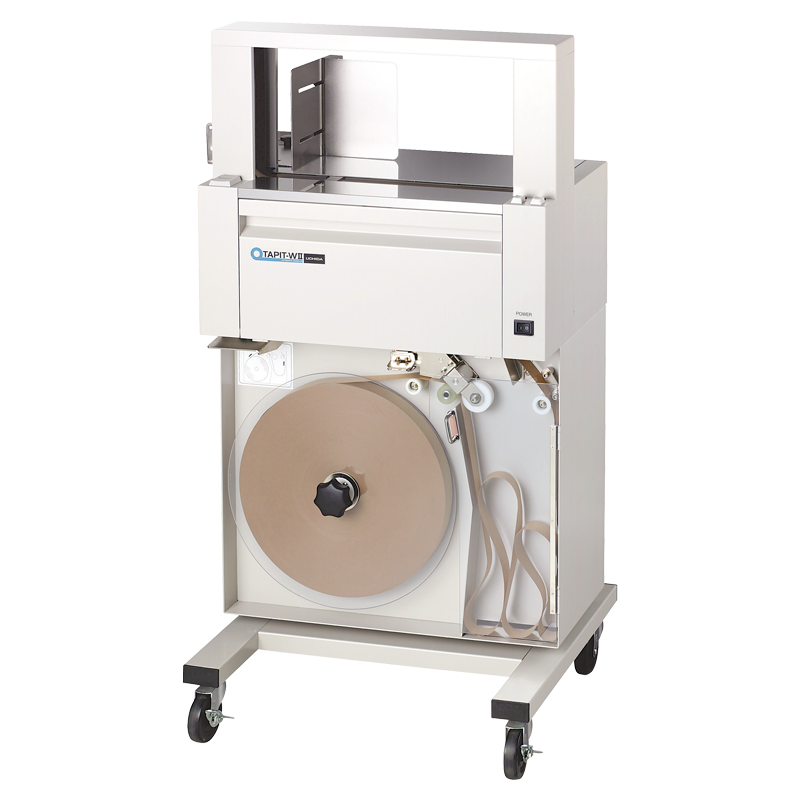

Tapit-Wll+
Tapit-WII+ has been Uchida's best-selling bundler for decades. Although Tapit-WII+ is the standard model, decades of experience and number of upgrades keep it modern and sophisticated.
Video
Features
- For 30mm width tape
- Easy operation and user friendly
- No ready time
- Machine processes up to 24 products/min.
- Band tension from 5 - 20 N (1N=0.1kgf)
- Paper and film bands applicable
- Tape Cut switch makes it easy to clear jammed tape
Specifications
| Bundling size | Maximum | 400(W)x200(H)mm /15.7"x7.9" | |
|---|---|---|---|
| Minimum | 30(W)x10(H)mm/1.18"x0.39" | ||
| Bundling speed | Up to 26 bundles/min. | ||
| Bundling tension | 5-20N (1N=0.1kgf) | ||
| Tape width | 30mm/1.18" | ||
| Tape length *with dispenser stand |
Kraft tape (Brown) |
190m(623ft) / 800m(2,624ft)* | |
| Kraft tape (White) |
190m(623ft) / 800m(2,624ft)* | ||
| Film tape 110μ | 200m(656ft) / 800m(2,624ft)* | ||
| Film tape 80μ | 200m(656ft) | ||
| Film tape 60μ | - | ||
| Power Supply | 110/120/220/230/240VAC, 50Hz/60Hz 200W, single phase | ||
| Net weight | 32kgs/71lbs | ||
| Dimensions | 560(W)x300(D)x490(H)mm 22.0"x11.8"x19.3" |
||
| Functions | Pause | - | |
| Squeeze | - | ||
| Soft bundling | - | ||
| Options | Foot switch | Optional | |
| Dispenser stand | Optional | ||
| Soft/small bundle guide | Optional | ||
| AU device (I/O interface) |
Optional | ||
