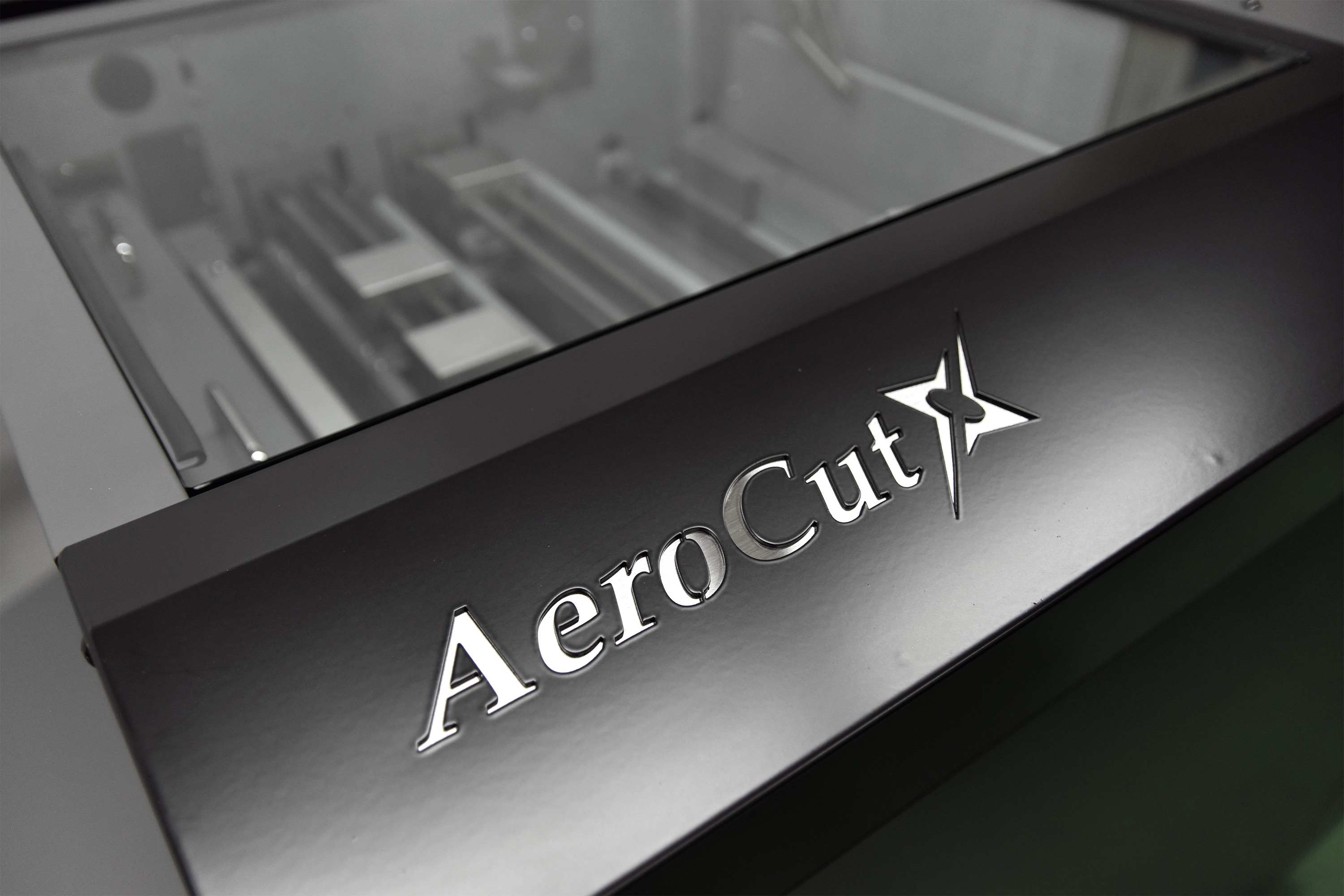

AeroCut X

AeroCut X is the basic slitter/cutter/creaser. This is the refined model of the original AeroCut launched in 2010, featuring enhanced productivity and user-friendliness.

Send a request

Download brochure

Video

Key Features

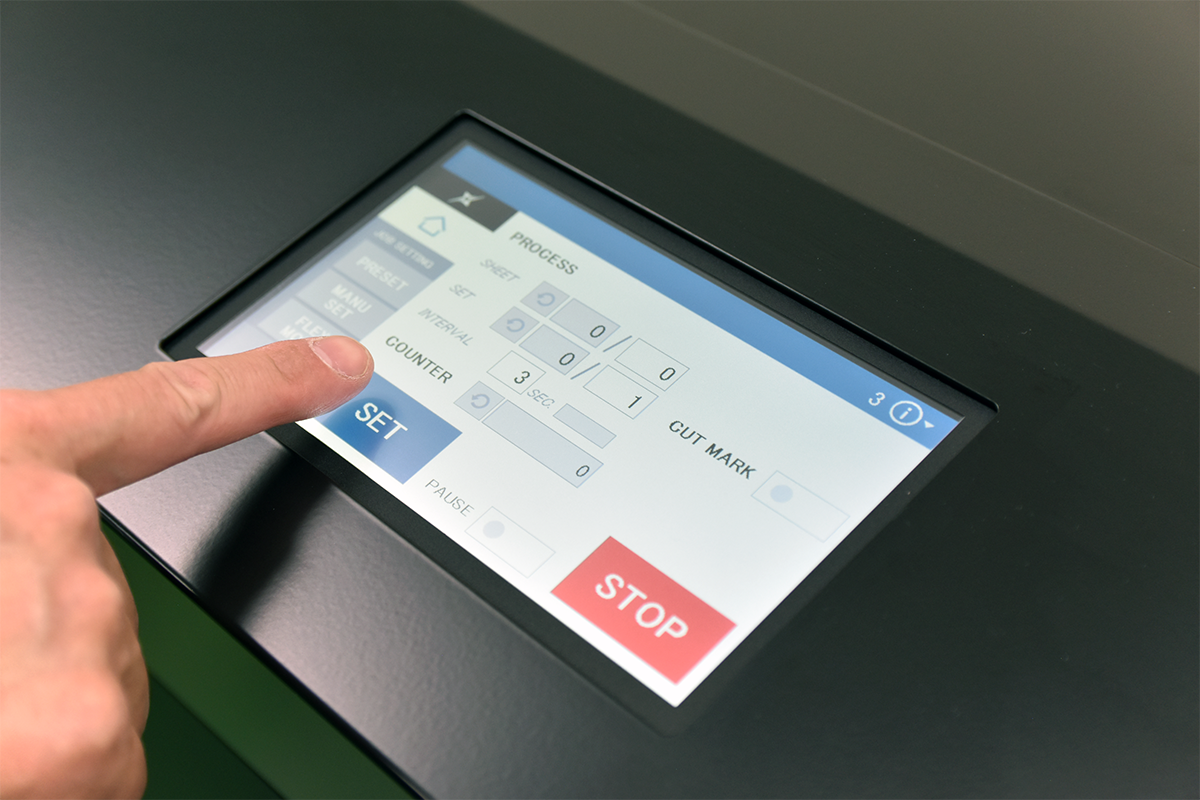

Intuitive operation
Thanks to the 7" built-in touch screen, AeroCut X allows operators to set job programs and run the machine intuitively and instantly.

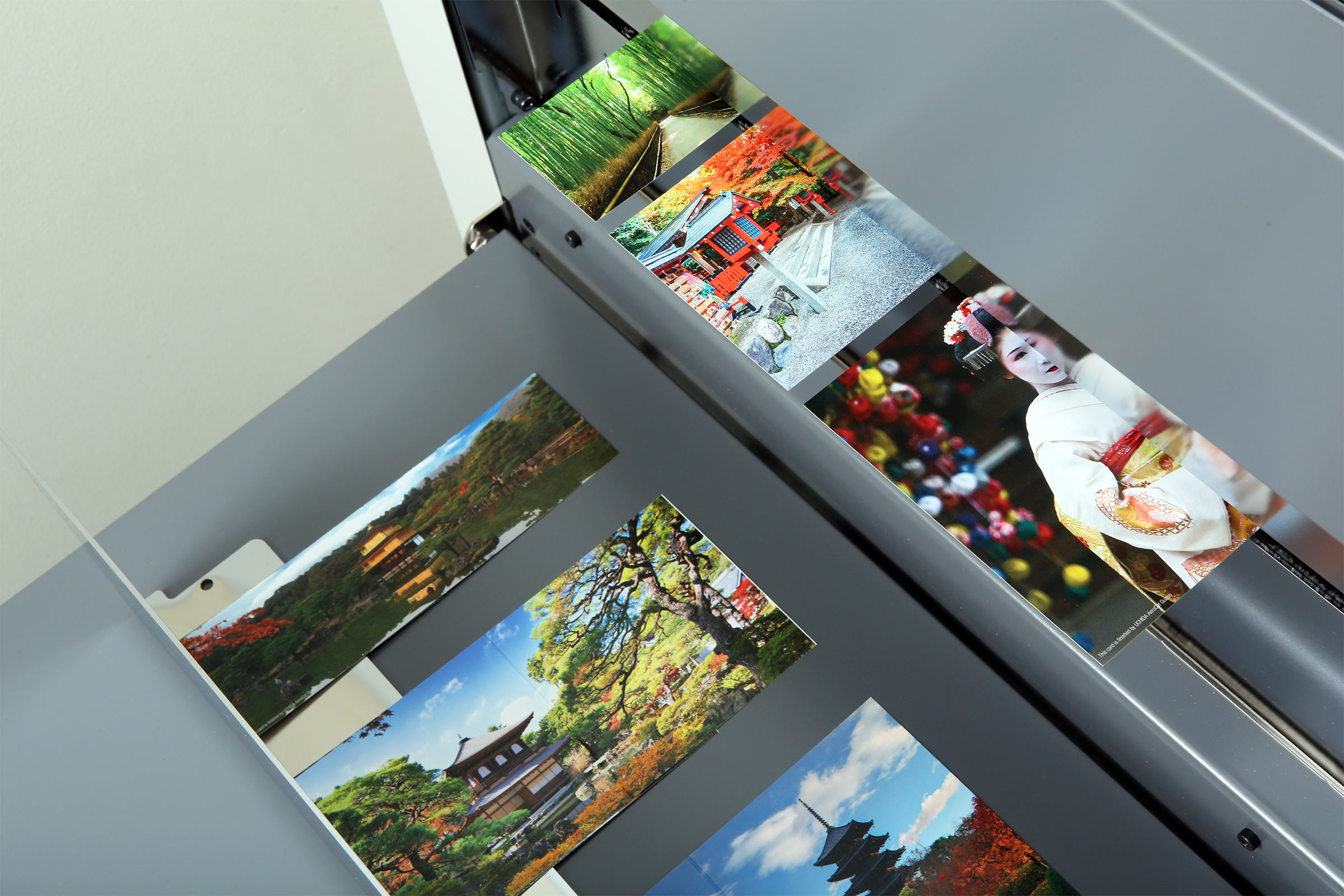

Flex mode
Flex mode allows operators to cut multiple sizes of cards from a page and add desired numbers of creases on these. It enables designers and printers to create new aspects of applications.

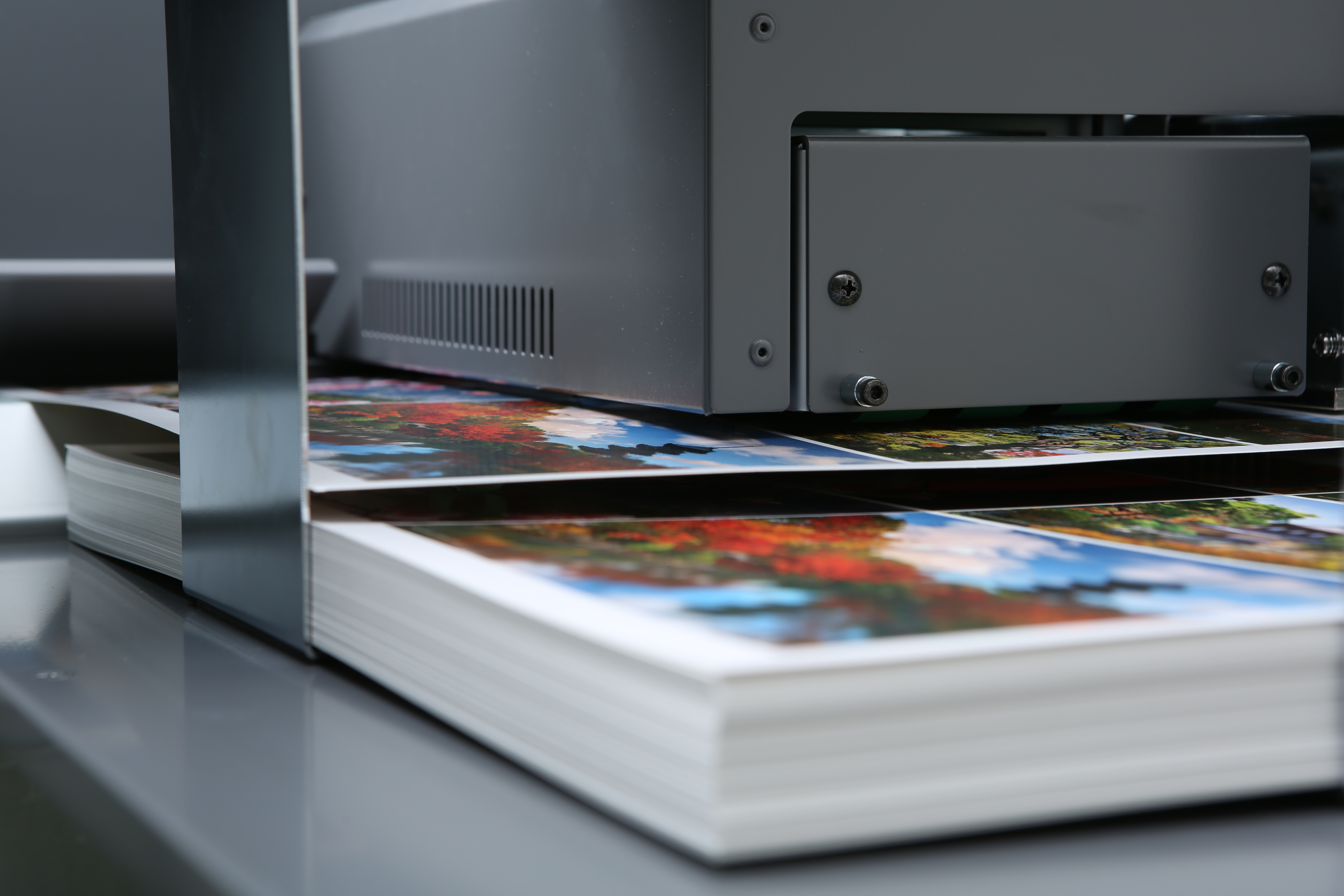

Patented feeding mechanism
The patented "Tri-Suction feeding mechanism" reduces risks of double feeds and misfeeds drastically, therefore it prevents paper jam inside and enhances actual throughput.

Features

Maximum paper size: 370mm x 750mm (*Up to 1,600mm with an option)
Maximum paper weight: 400gsm (*depending on paper quality)
Speed (Sheets/min. ): 8.6 x 21up business cards (SRA3)

Specifications

Basic functions	Slit, cross cut, crease, perforate, score, *slit-score
In-feed paper size	210(W)x210(L) - 370(W)x750(L)* mm *Up to 1,600 mm with an optional extension
Minimum finished size	55(W)x45(L) mm
Paper weight	120 - 400 gsm Depending on paper quality
Operation	10" touch screen with arm
Job memories	266 preset jobs 100 + 50 customized job memories
Feeding mechanism	Upper belt tri-suction feed (Patented) Side blow Skew adjustment Side aligner Ultra sonic double feed detection Cut mark registration Feed tray stacking capacity 100mm
Speed	(Sheets/min) 8.6x 21up business cards (SRA3) 13.3x 8up post cards (SRA3) 14.9x 4up greeting cards (SRA3) 20x A3 leaflet + centre crease (SRA3)
Dimensions	1,062(W)x763(D)x1,076(H) mm
Footprint	1,903(W)x763(D)x1,523(H) mm
Power source	100-120V or 200-240VAC, 50/60Hz single phase, 400W
Net weight	270kg
