AeroCut X Pro

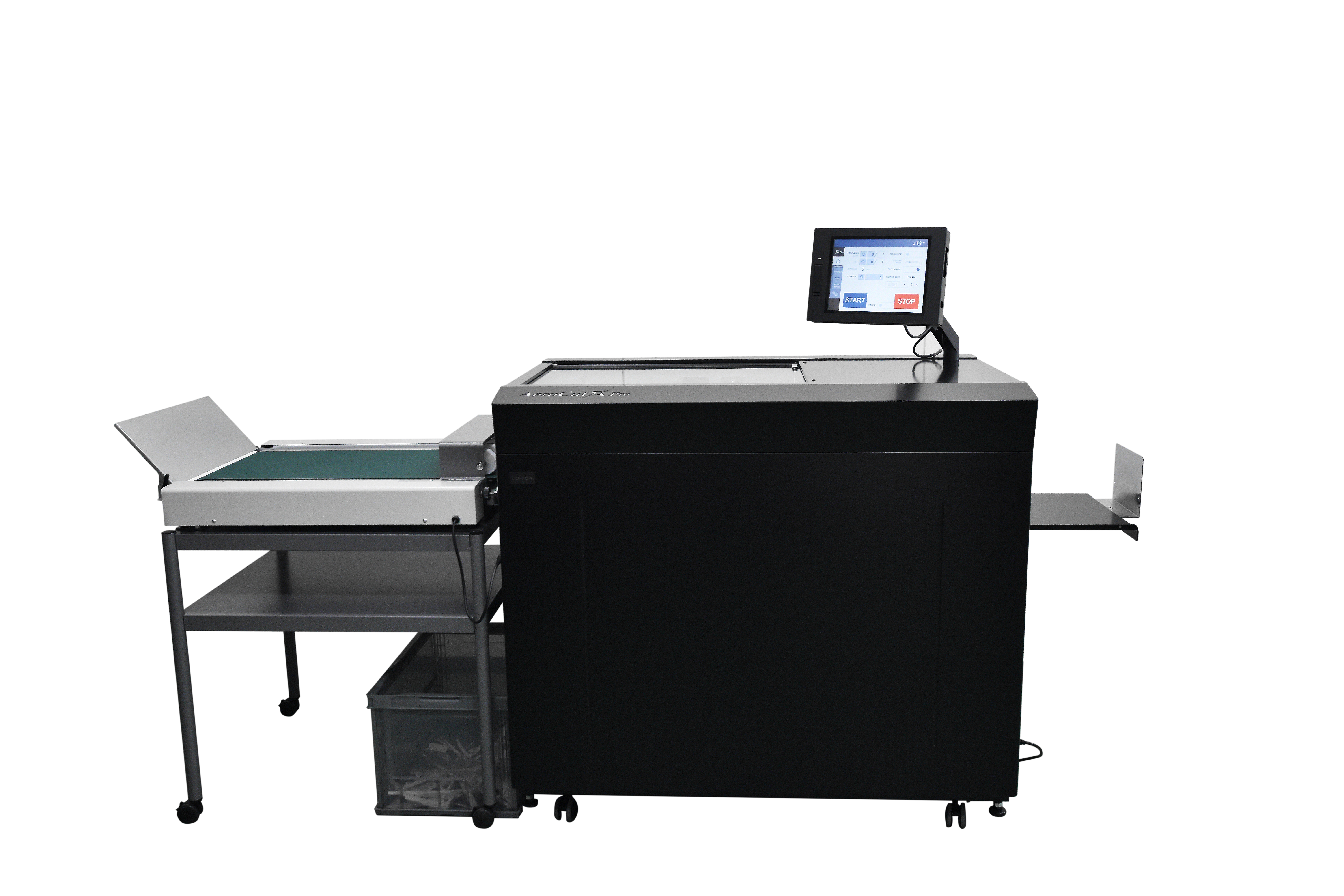

The AeroCut X Pro is the top-end slitter/cutter/creaser featuring technologies and knowledge stored since the launch of the original AeroCut in 2009.
Video
Key Features
-

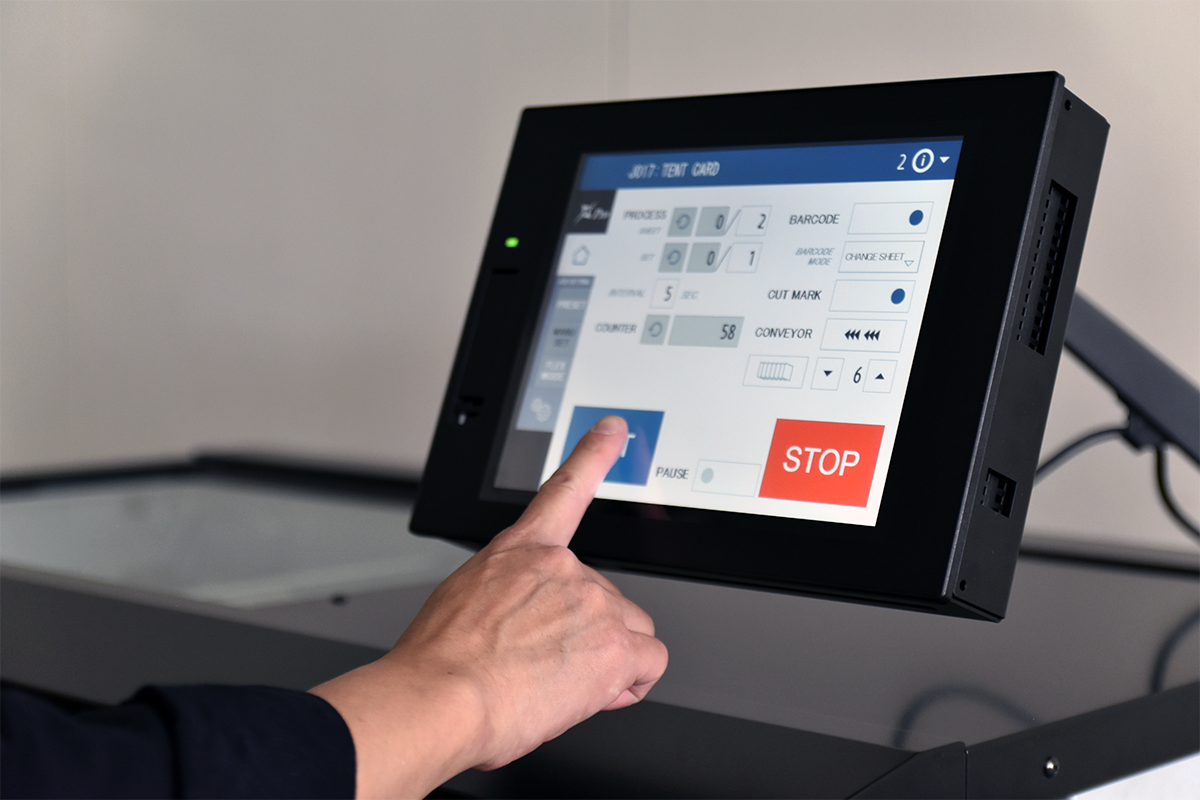

Intuitive operation
Thanks to the 10" touch screen, AeroCut X Pro allows operators to set job programmes and run the machine
intuitively and instantly. -

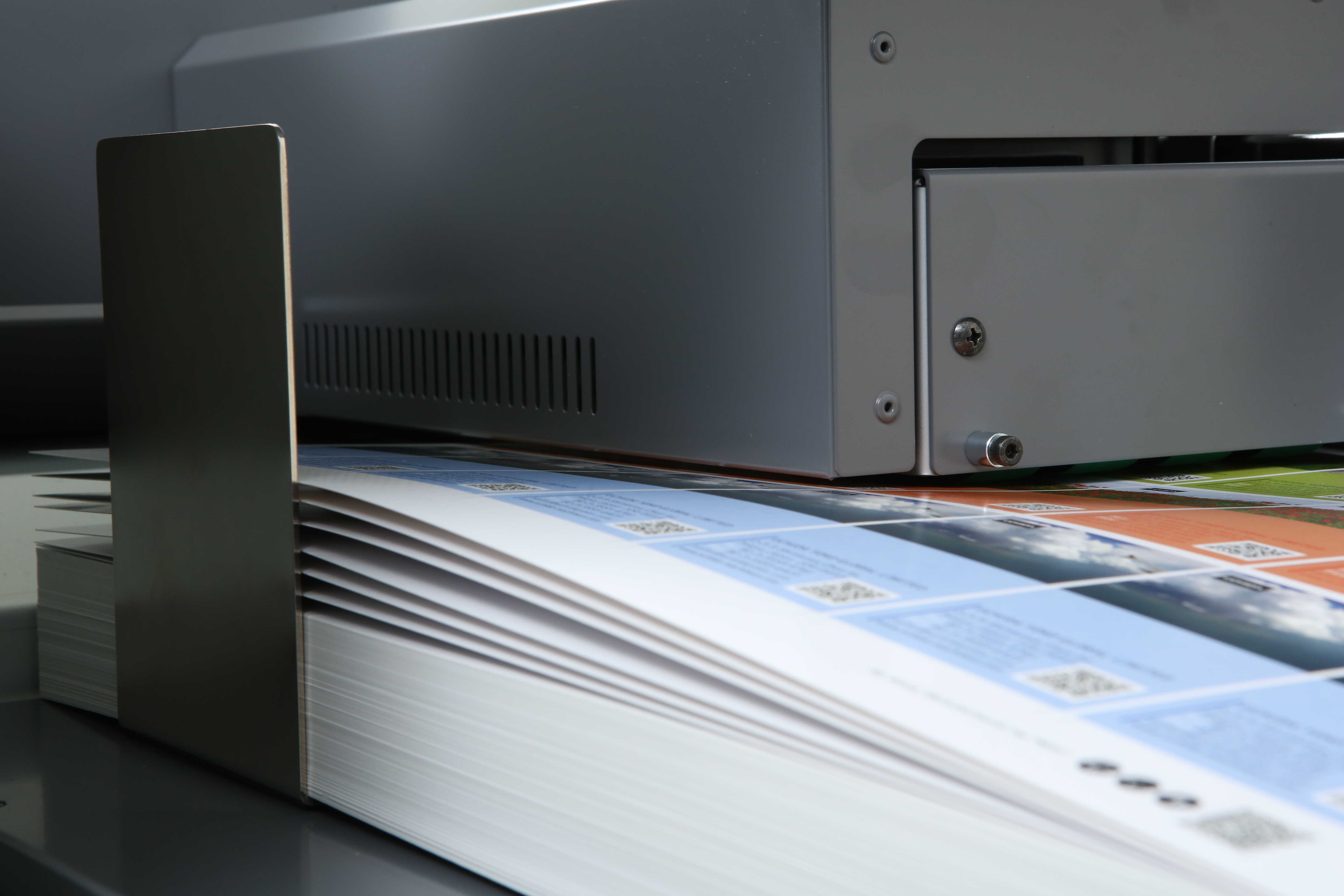

Expandable feed tray
The expandable feed tray can feedstocks up to 750mm in length. Most of today's digital print stocks can be finished on AeroCut X Pro. The stacking capacity is 100mm. -
Patented feeding mechanism
The patented "Tri-suction feeding mechanism" reduces the risks of double-feeds and misfeeds drastically, therefore it prevents paper jam inside and enhances productivity.
Features
- Maximum paper size:370x750mm (* up to 1,600mm with an option.)
- Paper weight: 120 - 400 gsm (*depending on the paper quality.)
- Speed(sheets/min.): 9x 21up business cards (SRA3)
Specifications
| Basic functions | Slit, cross cut, crease, *perforate, *score, *slit-score |
|---|---|
| In-feed paper size | 210(W)x210(L) - 370(W)x750(L)* mm *Up to 1,600 mm with an optional extension |
| Minimum finished size | 55(W)x45(L) mm |
| Paper weight | 120 - *400 gsm *Depending on paper quality |
| Operation | 10" touch screen with arm |
| Job memories | 266 preset jobs 100 + 50 customized job memories |
| Feeding mechanism | Upper belt tri-suction feed (Patented) Side blow Skew adjustment Side aligner Ultra sonic double feed detection Cut mark registration Feed tray stacking capacity 100mm |
| Speed | (Sheets/min) 9x 21up business cards (SRA3) 14.6x 8up post cards (SRA3) 18.9x 4up greeting cards (SRA3) 28.3x A3 leaflet + centre crease (SRA3) |
| Dimensions | 1,177(W)x709(D)x1,076(H) mm |
| Footprint | 2,397(W)*x709(D)x1,555(H) mm *With conveyor delivery |
| Power source | 100-120V or 200-240VAC, 50/60Hz single phase, 400W |
| Net weight | 290kg |
